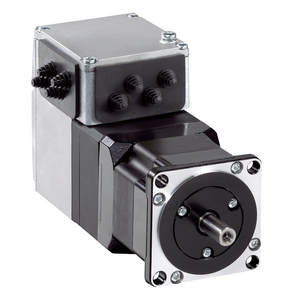

Schneider Electric ILA1F572TB2A0 Lexium Ila Servomot 24 36V Canop Multit

Schneider Electric ILA1F572TB2A0 Lexium Ila Servomot 24 36V Canop Multit

Schneider Electric
SKU:
ILA1F572TB2A0
|
UPC:
3389119225588
$2,790.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
integrated drive ILA with servo motor - 24..36 V - CANopen - PCB connector
Additional Information
Circularity Profile:
ENVEOLI2011004EN
Net Weight:
1.7 kg
Voltage State 1 Guaranteed:
15...30 V
Service Life In Hours:
20000 h bearing
[Us] Rated Supply Voltage:
24 V || 36 V
Relative Humidity:
15-85 % without condensation
Peak Stall Torque:
0.61 N.m
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Discrete Output Voltage:
23...25 V
Circle Diameter Of The Mounting Holes:
66.6 mm
Shock Resistance:
150 m/s² 1000 shocks EN/IEC 60068-2-29
Shaft End:
untapped
Maximum Axial Force Fa:
104 N force pressure) || 104 N tensile force)
Second Shaft:
without second shaft end
Ip Degree Of Protection:
shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP54 EN/IEC 60034-5
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6
Maximum Switching Current:
100 mA per output || 200 mA total
Standards:
IEC 60072-1 || EN 61800-3:2001, second environment || EN/IEC 50178 || IEC 61800-3, Ed 2 || EN/IEC 61800-3 || EN 50347 || EN 61800-3 : 2001-02
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Number Of Motor Poles:
6
Current Consumption:
7500 mA maximum continuous || 9000 mA peak
Device Short Name:
ILA
Supply Voltage Limits:
18-40 V
Motor Flange Size:
57 mm
Mounting Holes Diameter:
5.2 mm
Communication Interface:
CANopen DS301, Integrated
Protection Type:
short circuit of the output voltage || overload of output voltage || safe torque off
Voltage State 0 Guaranteed:
-3...4.5 V
Centring Collar Depth:
1.6 mm
Ambient Air Temperature For Operation:
50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
Product Or Component Type:
motion integrated drive
Sustainable Offer Status:
Green Premium product
Transmission Rate:
50, 100, 125, 250, 500, 800 and 1000 kbauds
Rotor Inertia:
0.18 kg.cm²
Ambient Air Temperature For Storage:
-25-70 °C
Speed Feedback Resolution:
16384 points/turn x 4096 turns
Centring Collar Diameter:
50 mm
Accuracy Error:
+/- 0.05 °
Shaft Length:
20 mm
Warranty:
18 months
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Mounting Support:
flange
Network Type:
DC
Nominal Speed:
3100 rpm 24 V || 5000 rpm 36 V
Marking:
CE
Winding Type:
high speed of rotation and medium torque
Product Certifications:
cUL || UL || TÜV
Mercury Free:
Yes
Gear Box Type:
without
Shaft Diameter:
9 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Maximum Radial Force Fr:
107 N
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Length:
207.8 mm
Continuous Stall Torque:
0.41 N.m
Associated Fuse Rating:
0.416666666666667
Number Of Mounting Holes:
4
Type Of Cooling:
natural convection
Nominal Torque:
0.41 N.m
Discrete Input Current:
10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
Environmental Disclosure:
ENVPEP2011004EN
Rohs Exemption Information:
Yes
Range Of Product:
Lexium integrated drive
Pvc Free:
Yes
Input/Output Type:
4 signals (each be used as input or output)
Electrical Connection:
printed circuit board connector
Number Of Motor Stacks:
2
Motor Type:
AC Synchronous Servo Motor
Feedback Type:
multi turn encoder
Phase:
single phase
Holding Brake:
without
