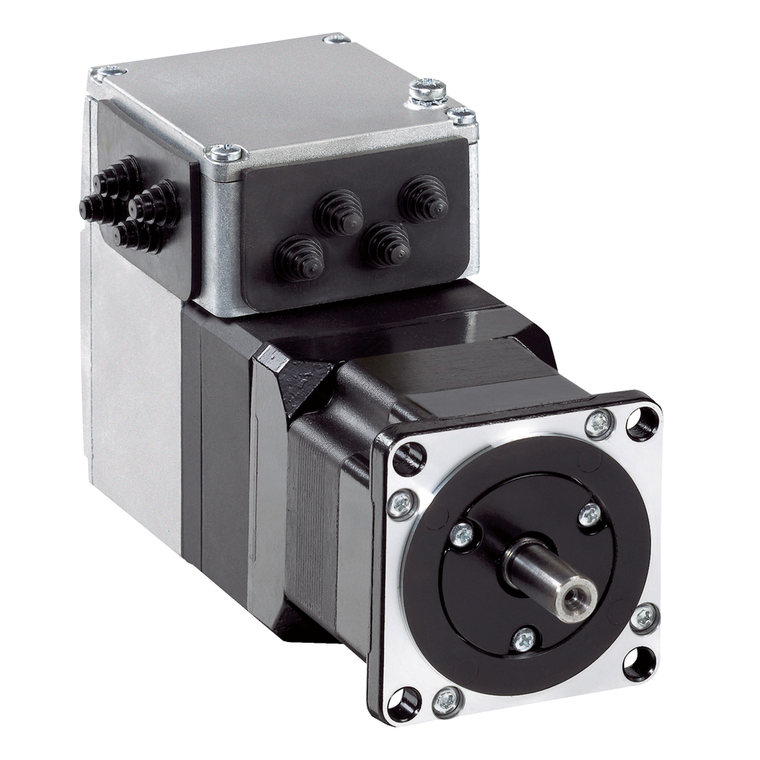

Schneider Electric ILA2K572PC2A0 Lexium Ila Servomot 24 48V Eth Ip Multit

(No reviews yet) Write a Review
SKU:
ILA2K572PC2A0
UPC:
3606485204604
Condition:
New
Relative Humidity:
15-85 % without condensation
Discrete Input Current:
10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface
Number Of Mounting Holes:
4
Supply Voltage Limits:
18-55.2 V
Feedback Type:
multi turn encoder
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Marking:
CE
Commissioning Interface:
RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Rotor Inertia:
0.173 kg.cm²
Centring Collar Depth:
1.6 mm
Type Of Cooling:
natural convection
Shock Resistance:
150 m/s² 1000 shocks IEC 60068-2-29
Peak Stall Torque:
1.62 N.m
Shaft Length:
20 mm
Accuracy Error:
+/- 0.05 °
Mercury Free:
Yes
Network Type:
DC
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
Nominal Torque:
0.78 N.m
Ambient Air Temperature For Storage:
-25-70 °C
Ip Degree Of Protection:
shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5
Range Of Product:
Lexium integrated drive
Standards:
IEC 60072-1 || IEC 50178 || EN 61800-3 : 2001-02 || EN 61800-3:2001, second environment || IEC 50347 || IEC 61800-3 || IEC 61800-3, Ed 2
Voltage State 1 Guaranteed:
15...30 V
Shaft End:
untapped
Gear Box Type:
without
Winding Type:
medium speed of rotation and medium torque
Maximum Radial Force Fr:
107 N
Current Consumption:
7000 mA maximum continuous || 8500 mA peak
Product Or Component Type:
motion integrated drive
Electrical Connection:
industrial connector
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Speed Feedback Resolution:
16384 points/turn x 4096 turns
Length:
207.8 mm
Number Of Motor Poles:
6
Maximum Switching Current:
100 mA per output || 200 mA total
Service Life In Hours:
20000 h bearing
Mounting Support:
flange
Warranty:
18 months
Net Weight:
1.7 kg
Transmission Rate:
125, 250, 500 kbauds
Phase:
single phase
Environmental Disclosure:
ENVPEP2011004EN
Circularity Profile:
ENVEOLI2011004EN
Discrete Output Voltage:
23...25 V
Maximum Axial Force Fa:
104 N force pressure) || 104 N tensile force)
Mounting Holes Diameter:
5.2 mm
Number Of Motor Stacks:
2
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Centring Collar Diameter:
50 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Nominal Speed:
1600 rpm 24 V || 3400 rpm 48 V
Holding Brake:
without
Device Short Name:
ILA
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Certifications:
cUL || UL || TÜV
Circle Diameter Of The Mounting Holes:
66.6 mm
Shaft Diameter:
9 mm
Voltage State 0 Guaranteed:
-3...4.5 V
Continuous Stall Torque:
0.78 N.m
Protection Type:
short circuit of the output voltage || safe torque off || overload of output voltage
Pvc Free:
Yes
[Us] Rated Supply Voltage:
48 V || 24 V
Associated Fuse Rating:
16 A
Motor Flange Size:
57 mm
Motor Type:
AC Synchronous Servo Motor
Second Shaft:
without second shaft end
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Input/Output Type:
4 signals (each be used as input or output)
Communication Interface:
Ethernet/IP, Integrated
Catalog:
View
Datasheet:
View
$2,420.00

Description

This product is part of the Lexium ILA, ILE, ILS range, an offer of motion integrated drives for motion control. The motion integrated drive with a 6-pole AC synchronous servo motor features an integrated EtherNet/IP communication interface. It is equipped with a multiturn encoder (16384 points/turn x 4096 turns). Integration of the motor and the control electronics reduces the installation costs. The AC synchronous servo motor with a rated supply voltage of 24V to 48V DC, a peak current consumption of 8500mA and a nominal speed of 3400RPM at 48V. It provides high speed of rotation and medium torque with untapped shaft end. It is furnished with industrial connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. Its dimensions are 207.8mm (Length) x 57mm (Width), 9mm x 20mm shaft, centring collar dimensions are 1.6mm (Depth) x 50mm (Diameter) with 66.6mm circle diameter of the mounting hole. It weighs 1.7kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CE, TUV, CUL and UL. It meets EN/IEC 61800-3, EN 61800-3, 2001, second environment, IEC 60072-1, EN/IEC 50178, EN 61800-3, 2001-02, IEC 61800-3, Ed 2 and EN 50347 standards. It supports 57mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, fieldbus and safety function in a single device. Each motor technology offers a wide range of applications for decentralised motion solutions. The following operating modes can be set via the communication bus such as electronic gearbox (for drive ILA1x57 with single turn encoder), speed profile, manual (JOG), point-to-point and homing.
