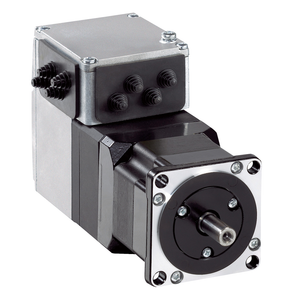

Schneider Electric ILA2T571TC1A0 Lexium Ila Servomot 24 48V Modtcp Enc

SKU:

ILA2T571TC1A0

UPC:

3606485187914

MPN:

Condition:

New

Feedback Type:

single turn encoder

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Switching Current:

100 mA per output || 200 mA total

Circle Diameter Of The Mounting Holes:

66.6 mm

Current Consumption:

11000 mA peak || 7500 mA maximum continuous

Electrical Connection:

industrial connector

Maximum Axial Force Fa:

104 N force pressure) || 104 N tensile force)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nominal Torque:

0.31 N.m

Ambient Air Temperature For Storage:

-25-70 °C

Continuous Stall Torque:

0.31 N.m

Pvc Free:

Yes

[Us] Rated Supply Voltage:

24 V || 48 V

Accuracy Error:

+/- 0.05 °

Warranty:

18 months

Shaft Diameter:

9 mm

Maximum Radial Force Fr:

89 N

Communication Interface:

Modbus TCP, Integrated

Input/Output Type:

4 signals (each be used as input or output)

Product Certifications:

TÜV || cUL || UL

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Centring Collar Depth:

1.6 mm

Associated Fuse Rating:

16 A

Device Short Name:

ILA

Motor Flange Size:

57 mm

Sustainable Offer Status:

Green Premium product

Relative Humidity:

15-85 % without condensation

Mounting Holes Diameter:

5.2 mm

Winding Type:

high speed of rotation and medium torque

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Speed Feedback Resolution:

16384 points/turn

Supply Voltage Limits:

18-55.2 V

Shaft End:

untapped

Voltage State 1 Guaranteed:

15...30 V

Ip Degree Of Protection:

shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP54 EN/IEC 60034-5

Transmission Rate:

10, 100 Mbits

Second Shaft:

without second shaft end

China Rohs Regulation:

X

Shock Resistance:

150 m/s² 1000 shocks EN/IEC 60068-2-29

Peak Stall Torque:

0.45 N.m

Mounting Support:

flange

Product Or Component Type:

motion integrated drive

Type Of Cooling:

natural convection

Number Of Mounting Holes:

4

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Standards:

EN/IEC 50178 || IEC 60072-1 || IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment || EN 50347 || EN 61800-3 : 2001-02 || EN/IEC 61800-3

Network Type:

DC

Length:

145.3 mm

Number Of Motor Stacks:

1

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6

Mercury Free:

Yes

Circularity Profile:

ENVEOLI2011004EN

Gear Box Type:

without

Holding Brake:

without

Phase:

single phase

Motor Type:

AC Synchronous Servo Motor

Protection Type:

safe torque off || overload of output voltage || short circuit of the output voltage

Number Of Motor Poles:

6

Discrete Input Current:

10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Nominal Speed:

5000 rpm 24 V || 7000 rpm 48 V

Range Of Product:

Lexium integrated drive

Centring Collar Diameter:

50 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Marking:

CE

Rohs Exemption Information:

Yes

Voltage State 0 Guaranteed:

-3...4.5 V

Shaft Length:

20 mm

Rotor Inertia:

0.095 kg.cm²

Service Life In Hours:

20000 h bearing

Environmental Disclosure:

ENVPEP2011004EN

Discrete Output Voltage:

23...25 V

Net Weight:

1.4 kg
