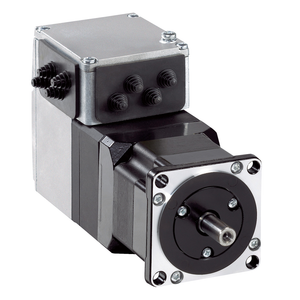

Schneider Electric ILA2T572TB1A0 Lexium Ila Servomot 24 48V Modtcp Enc

SKU:

ILA2T572TB1A0

UPC:

3606485188003

MPN:

Condition:

New

Circle Diameter Of The Mounting Holes:

66.6 mm

Network Type:

DC

Protection Type:

safe torque off || short circuit of the output voltage || overload of output voltage

Type Of Cooling:

natural convection

Supply Voltage Limits:

18-55.2 V

Standards:

IEC 60072-1 || EN 61800-3 : 2001-02 || IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment || IEC 50347 || IEC 50178 || IEC 61800-3

Maximum Axial Force Fa:

104 N force pressure) || 104 N tensile force)

Continuous Stall Torque:

0.57 N.m

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

motion integrated drive

Shaft Diameter:

9 mm

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Mounting Holes Diameter:

5.2 mm

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Centring Collar Diameter:

50 mm

Voltage State 1 Guaranteed:

15...30 V

Nominal Speed:

3000 rpm 24 V || 5100 rpm 48 V

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Pvc Free:

Yes

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Peak Stall Torque:

0.85 N.m

Service Life In Hours:

20000 h bearing

Circularity Profile:

ENVEOLI2011004EN

Number Of Motor Poles:

6

Maximum Radial Force Fr:

107 N

Rotor Inertia:

0.173 kg.cm²

Communication Interface:

Modbus TCP, Integrated

[Us] Rated Supply Voltage:

48 V || 24 V

Associated Fuse Rating:

16 A

Mercury Free:

Yes

Transmission Rate:

10, 100 Mbits

Shaft End:

untapped

Centring Collar Depth:

1.6 mm

Input/Output Type:

4 signals (each be used as input or output)

Holding Brake:

without

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Switching Current:

100 mA per output || 200 mA total

Length:

163.8 mm

Discrete Output Voltage:

23...25 V

Product Certifications:

cUL || TÜV || UL

Warranty:

18 months

Gear Box Type:

without

Sustainable Offer Status:

Green Premium product

Feedback Type:

single turn encoder

China Rohs Regulation:

X

Ambient Air Temperature For Storage:

-25-70 °C

Speed Feedback Resolution:

16384 points/turn

Shaft Length:

20 mm

Rohs Exemption Information:

Yes

Motor Type:

AC Synchronous Servo Motor

Voltage State 0 Guaranteed:

-3...4.5 V

Mounting Support:

flange

Environmental Disclosure:

ENVPEP2011004EN

Accuracy Error:

+/- 0.05 °

Discrete Input Current:

10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface

Relative Humidity:

15-85 % without condensation

Marking:

CE

Phase:

single phase

Number Of Mounting Holes:

4

Current Consumption:

7500 mA maximum continuous || 9000 mA peak

Electrical Connection:

printed circuit board connector

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range Of Product:

Lexium integrated drive

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Net Weight:

1.7 kg

Second Shaft:

without second shaft end

Motor Flange Size:

57 mm

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Winding Type:

high speed of rotation and medium torque

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Number Of Motor Stacks:

2

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Device Short Name:

ILA

Nominal Torque:

0.57 N.m
