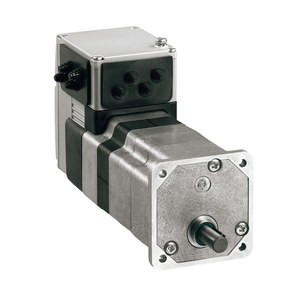

Schneider Electric ILE1F661PB1A0 Lexium Ile Bldc Mot 24 36V Canop
Schneider Electric
$840.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Lexium ILE range, an offer of integrated motion drives for motion control. The motion integrated drive with a 6-pole brushless DC motor features an integrated CANopen DS301 communication interface and untapped shaft without holding brake. The brushless DC motor with a rated supply voltage of 24V, 36V DC, a peak current consumption of 7000mA and a nominal speed of 4800RPM at 36V. The shaft dimensions are 8mm (diameter) x 25mm (length). It is furnished with printed circuit board connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. Its dimensions are 122mm (length) x 66mm (width) and the centering collar dimensions are 2mm (depth) x 40mm (diameter) with 73.54mm mounting hole. Its weighs 1.4kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CE, TUV, CUL and UL. It meets EN/IEC 61800-3, EN 61800-3 2001, EN/IEC 50178, EN 61800-3 2001-02, IEC 61800-3, Ed 2 and EN 50347 standards. It supports 66mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor.
- Communication Interface:
- CANopen DS301, Integrated
- Maximum Mechanical Speed:
- 5000 rpm
- Centring Collar Diameter:
- 40 mm
- Mounting Support:
- flange
- Discrete Output Voltage:
- 23...25 V
- Shaft Diameter:
- 8 mm
- Shock Resistance:
- 150 m/s² 1000 shocks IEC 60068-2-29
- Length:
- 122 mm
- Feedback Type:
- BLDC encoder
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
- Reduction Ratio:
- 0.0423611111111111
- Protection Type:
- overload of output voltage || short circuit of the output voltage || safe torque off
- Winding Type:
- medium speed of rotation and medium torque
- Voltage State 1 Guaranteed:
- 15...30 V
- Holding Brake:
- without
- Accuracy Error:
- +/- 1 °
- Peak Stall Torque:
- 0.26 N.m 24 V || 0.36 N.m 36 V
- China Rohs Regulation:
- X
- Shaft Length:
- 25 mm
- Ambient Air Temperature For Operation:
- 50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
- Nominal Speed:
- 4000 rpm 24 V || 4800 rpm 36 V
- Second Shaft:
- without second shaft end
- Nominal Torque:
- 0.175 N.m 24 V || 0.24 N.m 36 V
- Network Type:
- DC
- Transmission Rate:
- 50, 100, 125, 250, 500, 800 and 1000 kbauds
- Maximum Switching Current:
- 100 mA per output || 200 mA total
- Phase:
- single phase
- Relative Humidity:
- 15-85 % without condensation
- Discrete Input Current:
- 10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
- Motor Flange Size:
- 66 mm
- Gear Box Type:
- without
- Number Of Mounting Holes:
- 4
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Service Life In Hours:
- 20000 h bearing
- Maximum Axial Force Fa:
- 30 N force pressure) || 30 N tensile force)
- Net Weight:
- 1.4 kg
- Maximum Radial Force Fr:
- 80 N
- Sustainable Offer Status:
- Green Premium product
- Type Of Cooling:
- natural convection
- Electrical Connection:
- printed circuit board connector
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Standards:
- IEC 50347 || IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment || EN 61800-3 : 2001-02 || IEC 61800-3 || IEC 50178 || IEC 60072-1
- Pvc Free:
- Yes
- Environmental Disclosure:
- ENVPEP2011005EN
- Current Consumption:
- 7000 mA peak || 5500 mA maximum continuous
- Number Of Motor Poles:
- 6
- Circularity Profile:
- ENVEOLI2011005EN
- Permissible Ambient Air Temperature Around The Device:
- 105 °C power amplifier || 110 °C motor
- Product Certifications:
- cUL || UL || TÃV
- Mercury Free:
- Yes
- Detent Torque:
- 0.08 N.m
- Circle Diameter Of The Mounting Holes:
- 73.54 mm
- Warranty:
- 18 months
- Marking:
- CE
- Motor Type:
- brushless DC motor
- Ip Degree Of Protection:
- shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5
- [Us] Rated Supply Voltage:
- 24 V || 36 V
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Number Of Motor Stacks:
- 1
- Input/Output Type:
- 4 signals (each be used as input or output)
- Maximum Supply Current:
- 0.06 A 36 V power stage disabled) || 0.1 A 24 V power stage disabled) || 4.7 A 24 V || 5.1 A 36 V
- Voltage State 0 Guaranteed:
- -3...4.5 V
- Speed Feedback Resolution:
- 12 points/turn
- Ambient Air Temperature For Storage:
- -25-70 °C
- Range Of Product:
- Lexium integrated drive
- Shaft End:
- untapped
- Nominal Output Power:
- 117 W 36 V || 74 W 24 V
- Rotor Inertia:
- 0.149 kg.cm²
- Centring Collar Depth:
- 2 mm
- Continuous Stall Torque:
- 0.27 N.m
- Mounting Holes Diameter:
- 4.4 mm
- Product Or Component Type:
- motion integrated drive
- Associated Fuse Rating:
- 0.416666666666667
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating
- Supply Voltage Limits:
- 18-40 V
- Device Short Name:
- ILE
- Rohs Exemption Information:
- Yes
