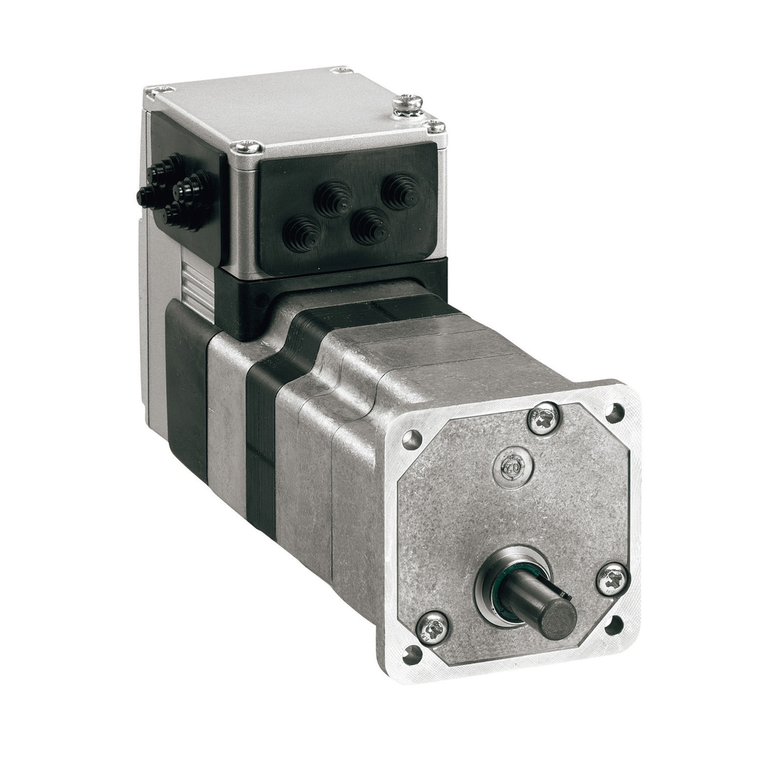

Schneider Electric ILE1F661PB1A4 Lexium Ile Bldc Mot 24 36V Canop Gear

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILE1F661PB1A4

UPC:

3389119222341

MPN:

Condition:

New

Service Life In Hours:

2500 h bearing short-term operation || 15000 h bearing long-term operation

Shaft Length:

25 mm

China Rohs Regulation:

X

Nominal Output Power:

38 W 24 V || 48 W 36 V

Sustainable Offer Status:

Green Premium product

Type Of Cooling:

natural convection

Centring Collar Depth:

4 mm

Continuous Stall Torque:

14 N.m

Winding Type:

medium speed of rotation and medium torque

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Standards:

EN 61800-3 : 2001-02 || EN 61800-3:2001, second environment || IEC 61800-3 || IEC 61800-3, Ed 2 || IEC 50178 || IEC 60072-1 || IEC 50347

Net Weight:

1.85 kg

Gear Box Type:

straight teeth gear, 4 stages

Second Shaft:

without second shaft end

Mounting Support:

flange

Motor Flange Size:

66 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Phase:

single phase

Input/Output Type:

4 signals (each be used as input or output)

Protection Type:

short circuit of the output voltage || safe torque off || overload of output voltage

Electrical Connection:

printed circuit board connector

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Detent Torque:

8 N.m

Communication Interface:

CANopen DS301, Integrated

Associated Fuse Rating:

0.416666666666667

Voltage State 1 Guaranteed:

15...30 V

Current Consumption:

7000 mA peak || 5500 mA maximum continuous

Nominal Speed:

35 rpm 24 V || 42 rpm 36 V

Network Type:

DC

Speed Feedback Resolution:

12 points/turn motor || 0.26° gearbox output

Length:

174 mm

Feedback Type:

BLDC encoder

Maximum Torsional Backlash:

1 °

Range Of Product:

Lexium integrated drive

Accuracy Error:

+/- 1 point

Marking:

CE

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Reduction Ratio:

115:1 (3675:32)

Shaft End:

keyed

Shaft Diameter:

10 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Number Of Mounting Holes:

4

Product Or Component Type:

motion integrated drive

Warranty:

18 months

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Peak Stall Torque:

14.95 N.m 24 V || 20.7 N.m 36 V

Pvc Free:

Yes

Number Of Motor Stacks:

1

Environmental Disclosure:

ENVPEP1411012EN

Number Of Motor Poles:

6

Maximum Supply Current:

0.06 A 36 V power stage disabled) || 0.1 A 24 V power stage disabled) || 2.1 A 36 V || 2.6 A 24 V

Discrete Output Voltage:

23...25 V

Voltage State 0 Guaranteed:

-3...4.5 V

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Operation:

50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)

Motor Type:

brushless DC motor

Mercury Free:

Yes

Mounting Holes Diameter:

4.4 mm

Circle Diameter Of The Mounting Holes:

73.54 mm

Discrete Input Current:

10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface

Rotor Inertia:

1962 kg.cm²

Centring Collar Diameter:

16 mm

Ambient Air Temperature For Storage:

-25-70 °C

Product Certifications:

cUL || TÜV || UL

Maximum Mechanical Speed:

44 rpm

Nominal Torque:

10 N.m 24 V || 11 N.m 36 V

Maximum Radial Force Fr:

200 N long-term operation) || 200 N short-term operation)

Holding Brake:

without

Transmission Rate:

50, 100, 125, 250, 500, 800 and 1000 kbauds

Circularity Profile:

ENVEOLI1411012EN

Relative Humidity:

15-85 % without condensation

[Us] Rated Supply Voltage:

24 V || 36 V

Key Width:

16 mm

Device Short Name:

ILE

Maximum Switching Current:

100 mA per output || 200 mA total

Supply Voltage Limits:

18-40 V

Maximum Axial Force Fa:

10 N long-term operation) || 80 N short-term operation)
