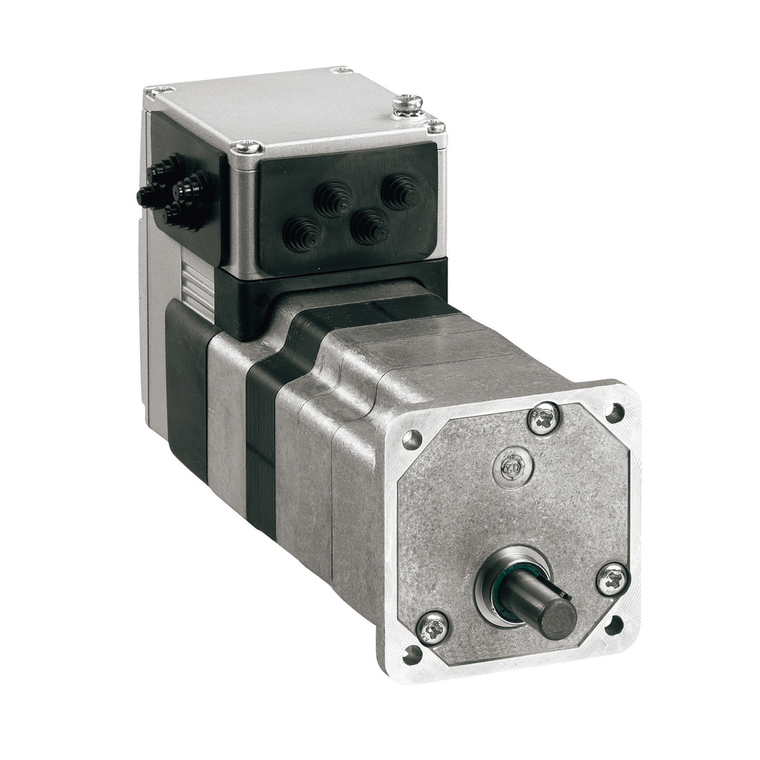

Schneider Electric ILE1F661PC1A2 Lexium Ile Bldc Mot 24 36V Canop Gear
SKU:
ILE1F661PC1A2
UPC:
3.38912E+12
MPN:
Condition:
New
Motor Type:
brushless DC motor
Phase:
single phase
China Rohs Regulation:
X
Service Life In Hours:
2500 h bearing short-term operation || 15000 h bearing long-term operation
Maximum Switching Current:
100 mA per output || 200 mA total
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Associated Fuse Rating:
0.416666666666667
Current Consumption:
7000 mA peak || 5500 mA maximum continuous
Voltage State 1 Guaranteed:
15...30 V
Nominal Speed:
107 rpm 24 V || 128 rpm 36 V
Maximum Supply Current:
0.06 A 36 V power stage disabled) || 0.1 A 24 V power stage disabled) || 4 A 24 V || 3.4 A 36 V
Key Width:
16 mm
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Number Of Motor Stacks:
1
Sustainable Offer Status:
Green Premium product
Continuous Stall Torque:
8.2 N.m
Communication Interface:
CANopen DS301, Integrated
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Circle Diameter Of The Mounting Holes:
73.54 mm
[Us] Rated Supply Voltage:
36 V || 24 V
Number Of Mounting Holes:
4
Ambient Air Temperature For Storage:
-25-70 °C
Shaft Diameter:
10 mm
Product Certifications:
UL || TÃV || cUL
Maximum Torsional Backlash:
1 °
Discrete Output Voltage:
23...25 V
Length:
174 mm
Protection Type:
safe torque off || short circuit of the output voltage || overload of output voltage
Voltage State 0 Guaranteed:
-3...4.5 V
Relative Humidity:
15-85 % without condensation
Speed Feedback Resolution:
12 points/turn motor || 0.8° gearbox output
Nominal Output Power:
65 W 24 V || 81 W 36 V
Shock Resistance:
150 m/s² 1000 shocks IEC 60068-2-29
Discrete Input Current:
10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
Type Of Cooling:
natural convection
Centring Collar Diameter:
16 mm
Number Of Motor Poles:
6
Winding Type:
medium speed of rotation and medium torque
Shaft Length:
25 mm
Holding Brake:
without
Detent Torque:
3 N.m
Reduction Ratio:
38:1 (75:2)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation:
50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
Net Weight:
1.85 kg
Maximum Mechanical Speed:
133 rpm
Marking:
CE
Network Type:
DC
Rotor Inertia:
211 kg.cm²
Pvc Free:
Yes
Product Or Component Type:
motion integrated drive
Accuracy Error:
+/- 1 point
Range Of Product:
Lexium integrated drive
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Short Name:
ILE
Standards:
IEC 61800-3 || IEC 60072-1 || EN 61800-3:2001, second environment || IEC 50178 || IEC 50347 || IEC 61800-3, Ed 2 || EN 61800-3 : 2001-02
This product is part of the Lexium ILE range, an offer of integrated motion drives for motion control. The motion integrated drive with a 6-pole brushless DC motor features an integrated CANopen...
