10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
Number Of Motor Stacks:
1
Service Life In Hours:
2500 h bearing short-term operation || 15000 h bearing long-term operation
Key Width:
16 mm
Continuous Stall Torque:
14 N.m
Ambient Air Temperature For Storage:
-25-70 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Current Consumption:
7000 mA peak || 5500 mA maximum continuous
Length:
174 mm
Product Or Component Type:
motion integrated drive
Communication Interface:
CANopen DS301, Integrated
Supply Voltage Limits:
18-40 V
Net Weight:
1.85 kg
Input/Output Type:
4 signals (each be used as input or output)
Centring Collar Depth:
4 mm
Voltage State 1 Guaranteed:
15...30 V
Gear Box Type:
straight teeth gear, 4 stages
Circle Diameter Of The Mounting Holes:
73.54 mm
Network Type:
DC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Nominal Speed:
35 rpm 24 V || 42 rpm 36 V
Detent Torque:
8 N.m
Maximum Torsional Backlash:
1 °
Maximum Supply Current:
0.06 A 36 V power stage disabled) || 0.1 A 24 V power stage disabled) || 2.1 A 36 V || 2.6 A 24 V
Ambient Air Temperature For Operation:
50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
Motor Type:
brushless DC motor
Winding Type:
medium speed of rotation and medium torque
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Circularity Profile:
ENVEOLI1411012EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Warranty:
18 months
Type Of Cooling:
natural convection
Feedback Type:
BLDC encoder
Range Of Product:
Lexium integrated drive
Protection Type:
safe torque off || short circuit of the output voltage || overload of output voltage
Marking:
CE
Reduction Ratio:
115:1 (3675:32)
Centring Collar Diameter:
16 mm
Transmission Rate:
50, 100, 125, 250, 500, 800 and 1000 kbauds
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pvc Free:
Yes
Rotor Inertia:
1962 kg.cm²
Rohs Exemption Information:
Yes
Voltage State 0 Guaranteed:
-3...4.5 V
Holding Brake:
without
Shock Resistance:
150 m/s² 1000 shocks IEC 60068-2-29
Maximum Radial Force Fr:
200 N long-term operation) || 200 N short-term operation)

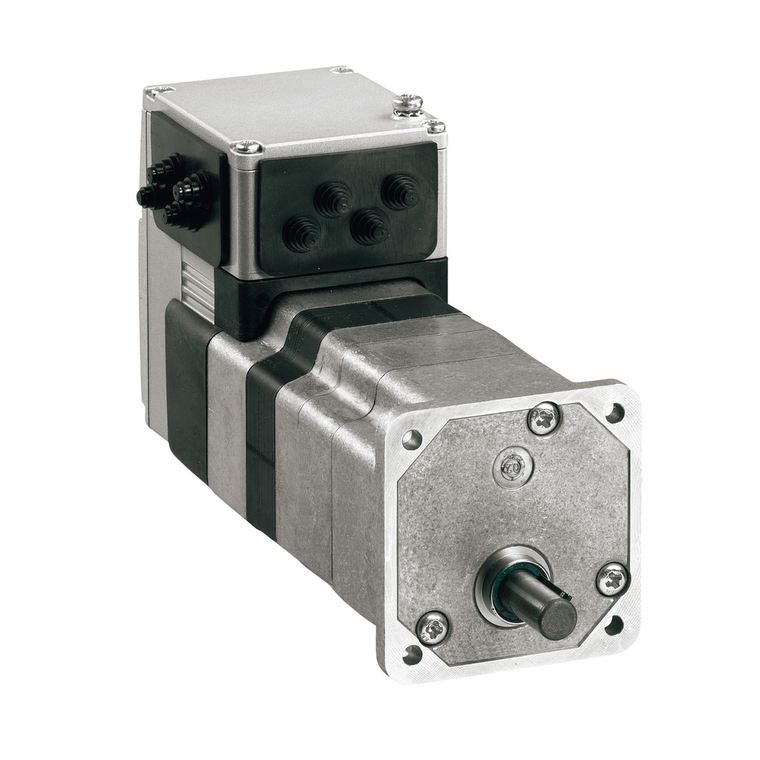

This product is part of the Lexium ILE range, an offer of integrated motion drives for motion control. The motion integrated drive with a 6-pole brushless DC motor features an integrated CANopen...
This Lexium ILE integrated servo drive works at a rated supply voltage of 24V or 36V dc. This integrated drive range offers the motor technologie to meet the requirements for dynamic performance,...
