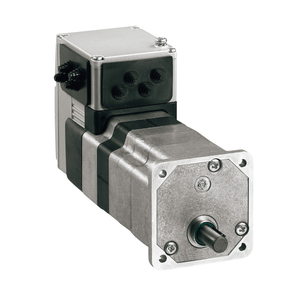

Schneider Electric ILE2E661PB1A0 Lexium Ile Bldc Mot 24 48V Ethcat

Schneider Electric ILE2E661PB1A0 Lexium Ile Bldc Mot 24 48V Ethcat

Schneider Electric
SKU:
ILE2E661PB1A0
|
UPC:
3606485188799
$1,140.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
brushless DC motor, Lexium ILA ILE ILS, 24 to 48V, EtherCAT interface, 122mm, without gearbox
Additional Information
Nominal Speed:
4800 rpm 24 V || 6000 rpm 48 V
Motor Flange Size:
66 mm
Winding Type:
medium speed of rotation and medium torque
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shaft Length:
25 mm
Second Shaft:
without second shaft end
Current Consumption:
7000 mA peak || 5500 mA maximum continuous
Network Type:
DC
Discrete Input Current:
10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
Peak Stall Torque:
0.43 N.m 24 V || 0.43 N.m 48 V
Shaft Diameter:
8 mm
Type Of Cooling:
natural convection
Maximum Switching Current:
100 mA per output || 200 mA total
Commissioning Interface:
RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Number Of Motor Stacks:
1
Voltage State 1 Guaranteed:
15...30 V
Range Of Product:
Lexium integrated drive
Centring Collar Diameter:
40 mm
Feedback Type:
BLDC encoder
Supply Voltage Limits:
18-55.2 V
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-25-70 °C
Protection Type:
safe torque off || short circuit of the output voltage || overload of output voltage
Mounting Support:
flange
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Service Life In Hours:
20000 h bearing
Accuracy Error:
+/- 0.5 °
Shock Resistance:
150 m/s² 1000 shocks IEC 60068-2-29
Marking:
CE
Communication Interface:
EtherCAT, Integrated
Relative Humidity:
15-85 % without condensation
Length:
122 mm
Maximum Supply Current:
0.1 A power stage disabled) || 6.8 A 24 V || 3.8 A 48 V
Number Of Motor Poles:
6
China Rohs Regulation:
X
Shaft End:
untapped
Product Certifications:
TÜV || UL || cUL
Centring Collar Depth:
2 mm
Transmission Rate:
100 Mbits
Discrete Output Voltage:
23...25 V
Continuous Stall Torque:
0.28 N.m
Ip Degree Of Protection:
shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5
Detent Torque:
0.08 N.m
Device Short Name:
ILE
Warranty:
18 months
Maximum Radial Force Fr:
80 N
Motor Type:
brushless DC motor
Holding Brake:
without
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Nominal Torque:
0.26 N.m 24 V || 0.26 N.m 48 V
Ambient Air Temperature For Operation:
40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
Associated Fuse Rating:
16 A
Mounting Holes Diameter:
4.4 mm
Maximum Mechanical Speed:
6500 rpm || 7000 rpm
Mercury Free:
Yes
[Us] Rated Supply Voltage:
24 V || 48 V
Environmental Disclosure:
ENVPEP2011005EN
Input/Output Type:
4 signals (each be used as input or output)
Phase:
single phase
Voltage State 0 Guaranteed:
-3...4.5 V
Electrical Connection:
printed circuit board connector
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Net Weight:
1.4 kg
Speed Feedback Resolution:
12 points/turn
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Nominal Output Power:
131 W 24 V || 163 W 48 V
Number Of Mounting Holes:
4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
ENVEOLI2011005EN
Reduction Ratio:
0.0423611111111111
Product Or Component Type:
motion integrated drive
Rotor Inertia:
0.17 kg.cm²
Gear Box Type:
without
Standards:
IEC 61800-3, Ed 2 || IEC 61800-3 || IEC 60072-1 || EN 61800-3 : 2001-02 || EN 61800-3:2001, second environment || IEC 50347 || IEC 50178
Maximum Axial Force Fa:
30 N force pressure) || 30 N tensile force)
Rohs Exemption Information:
Yes
Circle Diameter Of The Mounting Holes:
73.54 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
