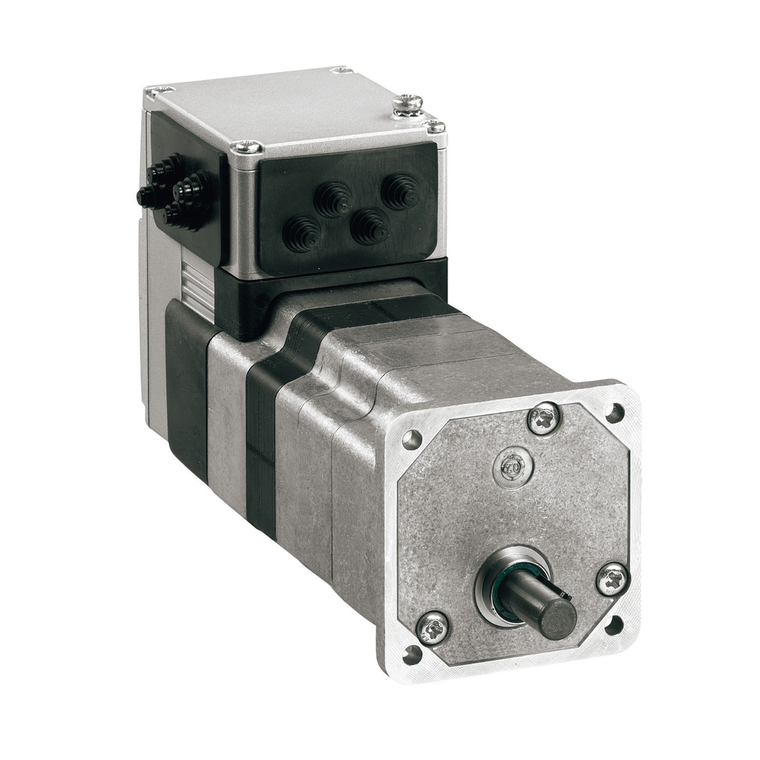

Schneider Electric ILE2K661S2172 Dc Motor, 6.0Nm, 128Rpm, 75:2 Spur, Ic

Schneider Electric ILE2K661S2172 Dc Motor, 6.0Nm, 128Rpm, 75:2 Spur, Ic

Schneider Electric
SKU:
ILE2K661S2172
|
UPC:
3606485459707
$2,545.28
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
brushless DC motor, Lexium ILA ILE ILS, 6.0nm, 128RPM, single phase
Additional Information
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Input/Output Type:
4 signals (each be used as input or output)
Motor Type:
brushless DC motor
Second Shaft:
without second shaft end
Mercury Free:
Yes
Feedback Type:
BLDC encoder
Type Of Cooling:
natural convection
[Us] Rated Supply Voltage:
24 V || 48 V
Product Or Component Type:
motion integrated drive
Ambient Air Temperature For Storage:
-25-70 °C
Protection Type:
overload of output voltage || short circuit of the output voltage || safe torque off
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Range Of Product:
Lexium integrated drive
Circularity Profile:
ENVEOLI1411012EN
Ambient Air Temperature For Operation:
40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Rohs Exemption Information:
Yes
Device Short Name:
ILE
Pvc Free:
Yes
Transmission Rate:
125, 250, 500 kbauds
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Product Certifications:
TÜV || UL || cUL
Discrete Input Current:
10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
Number Of Motor Poles:
6
Current Consumption:
7000 mA peak || 5500 mA maximum continuous
Marking:
CE
Supply Voltage Limits:
18-55.2 V
Winding Type:
medium speed of rotation and medium torque
Network Type:
DC
Voltage State 1 Guaranteed:
15...30 V
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Associated Fuse Rating:
16 A
Phase:
single phase
Motor Flange Size:
66 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Standards:
IEC 50178 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 61800-3, Ed 2 || IEC 61800-3 || EN 61800-3 : 2001-02 || IEC 50347
Ip Degree Of Protection:
shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5
Sustainable Offer Status:
Green Premium product
Shock Resistance:
150 m/s² 1000 shocks IEC 60068-2-29
Environmental Disclosure:
ENVPEP1411012EN
China Rohs Regulation:
X
Mounting Support:
flange
Voltage State 0 Guaranteed:
-3...4.5 V
Discrete Output Voltage:
23...25 V
Datasheet:
View
