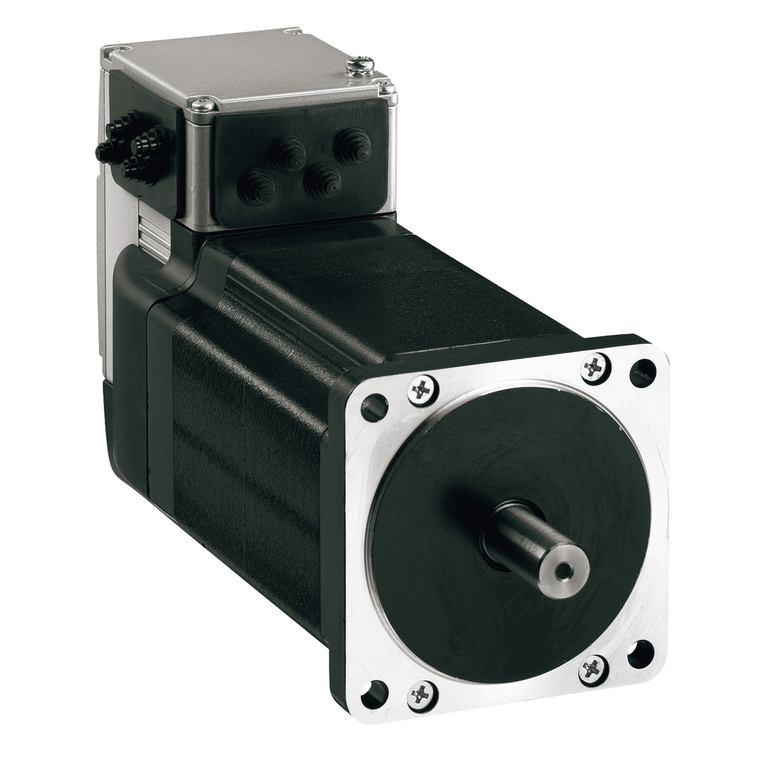

Schneider Electric ILS1F851PB1F0 Lexium Ils Stepper Mot 24 36V Canop Brk
SKU:
ILS1F851PB1F0
UPC:
3389119227117
MPN:
Condition:
New
Network Type:
DC
Type Of Cooling:
natural convection
China Rohs Regulation:
X
Shock Resistance:
150 m/s² 1000 shocks IEC 60068-2-29
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Number Of Motor Poles:
6
Service Life In Hours:
20000 h bearing
Sustainable Offer Status:
Green Premium product
Maximum Switching Current:
100 mA per output || 200 mA total
Length:
187.3 mm
Voltage State 1 Guaranteed:
15...30 V
Feedback Type:
index pulse
Shaft Diameter:
12 mm
Maximum Axial Force Fa:
170 N tensile force) || 30 N force pressure)
Nominal Speed:
200 rpm 24 V || 400 rpm 36 V
Standards:
IEC 61800-3, Ed 2 || IEC 61800-3 || EN 61800-3 : 2001-02 || IEC 60072-1 || IEC 50347 || EN 61800-3:2001, second environment || IEC 50178
Holding Brake:
with
Number Of Mounting Holes:
4
Phase:
single phase
Maximum Mechanical Speed:
2000 rpm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Device Short Name:
ILS
Electrical Connection:
printed circuit board connector
Circularity Profile:
ENVEOLI1411002EN
Product Certifications:
UL || TÃV || cUL
Input/Output Type:
4 signals (each be used as input or output)
Transmission Rate:
50, 100, 125, 250, 500, 800 and 1000 kbauds
Associated Fuse Rating:
0.416666666666667
Second Shaft:
without second shaft end
Warranty:
18 months
Protection Type:
safe torque off || overload of output voltage || short circuit of the output voltage
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP1411002EN
Product Or Component Type:
motion integrated drive
Discrete Output Voltage:
23...25 V
Nominal Torque:
2 N.m
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Accuracy Error:
+/- 6 arc min
Continuous Stall Torque:
2 N.m
Shaft End:
untapped
Mercury Free:
Yes
Rotor Inertia:
1.3 kg.cm²
Marking:
CE
Motor Flange Size:
85 mm
Mounting Holes Diameter:
6.5 mm
Pvc Free:
Yes
Discrete Input Current:
10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
Brake Pull-In Power:
22 W
Speed Feedback Resolution:
20000 points/turn
Centring Collar Diameter:
60 mm
Brake Application Time:
20 ms
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Current Consumption:
5000 mA maximum
Voltage State 0 Guaranteed:
-3...4.5 V
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Peak Stall Torque:
2 N.m
Relative Humidity:
15-85 % without condensation
Ambient Air Temperature For Storage:
-25-70 °C
Holding Torque:
6 N.m holding brake || 2 N.m
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range Of Product:
Lexium integrated drive
[Us] Rated Supply Voltage:
24 V || 36 V
Communication Interface:
CANopen DS301, Integrated
Maximum Radial Force Fr:
100 N
Net Weight:
4.4 kg
Mounting Support:
flange 85 mm
Ambient Air Temperature For Operation:
50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
This product is part of the Lexium ILS range, an offer of integrated motion drives for motion control. The integrated motion drive with a 6-pole stepper motor features an integrated CANopen DS301...
