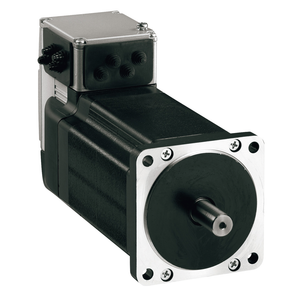

Schneider Electric ILS1F853TB1A0 Lexium Ils Stepper Mot 24 36V Canop
SKU:
ILS1F853TB1A0
UPC:
3389119227223
MPN:
Condition:
New
Phase:
single phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Storage:
-25-70 °C
Standards:
EN 61800-3 : 2001-02 || IEC 50347 || EN 61800-3:2001, second environment || IEC 50178 || IEC 60072-1 || IEC 61800-3, Ed 2 || IEC 61800-3
Shaft End:
untapped
Motor Type:
3-phase stepper motor
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Communication Interface:
CANopen DS301, Integrated
Rotor Inertia:
3.3 kg.cm²
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Of Product:
Lexium integrated drive
Continuous Stall Torque:
4.5 N.m
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Length:
200.6 mm
Gear Box Type:
without
Winding Type:
high speed of rotation and medium torque
Nominal Speed:
100 rpm 24 V || 300 rpm 36 V
Centring Collar Diameter:
60 mm
Maximum Axial Force Fa:
170 N tensile force) || 30 N force pressure)
Service Life In Hours:
20000 h bearing
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Environmental Disclosure:
ENVPEP1411002EN
Circle Diameter Of The Mounting Holes:
99 mm
Number Of Motor Stacks:
3
Mounting Holes Diameter:
6.5 mm
Product Or Component Type:
motion integrated drive
China Rohs Regulation:
X
Motor Flange Size:
85 mm
Second Shaft:
without second shaft end
Current Consumption:
6000 mA maximum
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Pvc Free:
Yes
Mounting Support:
flange 85 mm
Circularity Profile:
ENVEOLI1411002EN
Net Weight:
4.7 kg
Holding Torque:
4.5 N.m
Voltage State 0 Guaranteed:
-3...4.5 V
Warranty:
18 months
Voltage State 1 Guaranteed:
15...30 V
Discrete Output Voltage:
23...25 V
Number Of Motor Poles:
6
Shaft Diameter:
14 mm
Marking:
CE
Discrete Input Current:
10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
This product is part of the Lexium ILA, ILE, ILS range, an offer of motion integrated drives for motion control. The integrated motion drive with a 6-pole stepper motor features an integrated CANopen...
