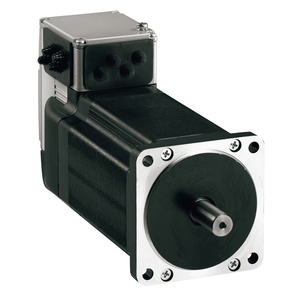

Schneider Electric ILS1M852PB1A0 Lexium Ils Stepper Mot 24 36V Mot Sq

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILS1M852PB1A0

UPC:

3389119227315

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Winding Type:

medium speed of rotation and medium torque

Protection Type:

overload of output voltage || short circuit of the output voltage || safe torque off

Network Type:

DC

Speed Feedback Resolution:

20000 points/turn

Maximum Switching Current:

100 mA per output || 200 mA total

[Us] Rated Supply Voltage:

24 V || 36 V

Centring Collar Depth:

2 mm

Shaft End:

untapped

Product Or Component Type:

motion integrated drive

Feedback Type:

index pulse

Device Short Name:

ILS

Centring Collar Diameter:

60 mm

Peak Stall Torque:

4 N.m

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Circularity Profile:

ENVEOLI1411002EN

Transmission Rate:

9.6, 19.2 and 38.4 kbauds

Relative Humidity:

15-85 % without condensation

Product Certifications:

UL || TÜV || cUL

Marking:

CE

Accuracy Error:

+/- 6 arc min

Discrete Input Current:

10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 10-10 mA at 24 V 24 V signal interface

Motor Type:

3-phase stepper motor

Supply Voltage Limits:

18-40 V

Rohs Exemption Information:

Yes

Shaft Diameter:

12 mm

Circle Diameter Of The Mounting Holes:

99 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Electrical Connection:

printed circuit board connector

Permissible Ambient Air Temperature Around The Device:

110 °C motor

Shock Resistance:

150 m/s² 1000 shocks EN/IEC 60068-2-29

Ambient Air Temperature For Operation:

50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)

Mounting Support:

flange

Maximum Radial Force Fr:

100 N

Input/Output Type:

4 signals (each be used as input or output)

Commissioning Interface:

RS485 9.6, 19.2 and 38.4 kbauds)

Communication Interface:

I/O for motion sequence, Integrated

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rotor Inertia:

2.2 kg.cm²

Service Life In Hours:

20000 h bearing

Number Of Motor Poles:

6

Environmental Disclosure:

ENVPEP1411002EN

Nominal Torque:

4 N.m

Number Of Mounting Holes:

4

Second Shaft:

without second shaft end

Current Consumption:

5000 mA maximum continuous

Mercury Free:

Yes

Motor Flange Size:

85 mm

China Rohs Regulation:

X

Ip Degree Of Protection:

shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP54 EN/IEC 60034-5

Length:

170.6 mm

Ambient Air Temperature For Storage:

-25-70 °C

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6

Voltage State 0 Guaranteed:

-3...4.5 V

Gear Box Type:

without

Holding Brake:

without

Mounting Holes Diameter:

6.5 mm

Shaft Length:

30 mm

Maximum Mechanical Speed:

1500 rpm

Net Weight:

3.6 kg

Number Of Motor Stacks:

2

Pvc Free:

Yes

Voltage State 1 Guaranteed:

15...30 V

Sustainable Offer Status:

Green Premium product

Type Of Cooling:

natural convection

Standards:

EN 50347 || EN/IEC 61800-3 || IEC 60072-1 || IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment || EN 61800-3 : 2001-02 || EN/IEC 50178

Discrete Output Voltage:

10...30 V

Nominal Speed:

100 rpm 24 V || 200 rpm 36 V

Phase:

single phase

Holding Torque:

4 N.m

Associated Fuse Rating:

0.416666666666667

Warranty:

18 months

Continuous Stall Torque:

4 N.m

Range Of Product:

Lexium integrated drive

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Axial Force Fa:

170 N tensile force) || 30 N force pressure)

Catalog:

View

Datasheet:

View
