WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Switching Current:
100 mA per output || 200 mA total
Rohs Exemption Information:
Yes
Type Of Cooling:
natural convection
Discrete Output Voltage:
23...25 V
Number Of Motor Poles:
6
Mounting Support:
flange
Discrete Input Current:
10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
Communication Interface:
RS485, Integrated
Mounting Holes Diameter:
5.2 mm
Speed Feedback Resolution:
20000 points/turn
Product Certifications:
cUL || UL || TÜV
[Us] Rated Supply Voltage:
36 V || 24 V
Winding Type:
medium speed of rotation and medium torque
Number Of Mounting Holes:
4
Voltage State 1 Guaranteed:
15...30 V
Number Of Motor Stacks:
1
Second Shaft:
without second shaft end
Shaft Length:
21 mm
Centring Collar Depth:
1.6 mm

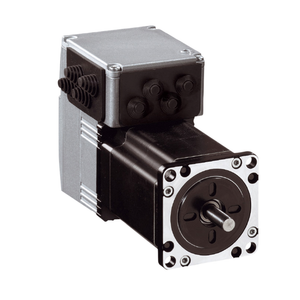

Motor Type:
3-phase stepper motor
Voltage State 0 Guaranteed:
-3...4.5 V
Feedback Type:
index pulse
Holding Brake:
without
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Protection Type:
safe torque off || short circuit of the output voltage || overload of output voltage
Warranty:
18 months
Maximum Axial Force Fa:
100 N tensile force) || 8.4 N force pressure)
Ambient Air Temperature For Operation:
50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
Environmental Disclosure:
ENVPEP1411002EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
