Schneider Electric ILS1U852PB1F0 Lexium Ils Stepper Mot 24 36V P D Brk

(No reviews yet) Write a Review

Write a Review

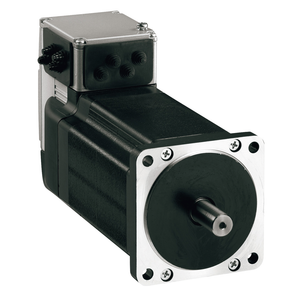

Schneider Electric ILS1U852PB1F0 Lexium Ils Stepper Mot 24 36V P D Brk

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILS1U852PB1F0

UPC:

3389119227650

MPN:

Condition:

New

Ambient Air Temperature For Storage:

-25-70 °C

Protection Type:

short circuit of the output voltage || overload of output voltage || safe torque off

Voltage State 0 Guaranteed:

-3...4.5 V

Mercury Free:

Yes

Type Of Cooling:

natural convection

Voltage State 1 Guaranteed:

15...30 V

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Motor Flange Size:

85 mm

Number Of Motor Stacks:

2

Maximum Radial Force Fr:

100 N

Electrical Connection:

printed circuit board connector

Brake Release Time:

40 ms

Ip Degree Of Protection:

shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP54 EN/IEC 60034-5

Range Of Product:

Lexium integrated drive

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Shaft Length:

30 mm

Holding Brake:

with

Maximum Mechanical Speed:

1500 rpm

Number Of Motor Poles:

6

Network Type:

DC

Speed Feedback Resolution:

1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036° || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps

Ambient Air Temperature For Operation:

50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)

Nominal Torque:

4 N.m

Second Shaft:

without second shaft end

Product Or Component Type:

motion integrated drive

Service Life In Hours:

20000 h bearing

[Us] Rated Supply Voltage:

24 V || 36 V

Circularity Profile:

ENVEOLI1411002EN

Winding Type:

medium speed of rotation and medium torque

Net Weight:

5.4 kg

Maximum Switching Current:

100 mA per output || 200 mA total

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Warranty:

18 months

Centring Collar Depth:

2 mm

Peak Stall Torque:

4 N.m

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Input/Output Type:

4 signals (each be used as input or output)

Centring Collar Diameter:

60 mm

Feedback Type:

index pulse

Product Certifications:

cUL || TÜV || UL

Mounting Support:

flange

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Continuous Stall Torque:

4 N.m

Environmental Disclosure:

ENVPEP1411002EN

Supply Voltage Limits:

18-40 V

Nominal Speed:

100 rpm 24 V || 200 rpm 36 V

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Shaft End:

untapped

Phase:

single phase

Communication Interface:

pulse/direction 24 V, Integrated

Pvc Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Gear Box Type:

without

Shock Resistance:

150 m/s² 1000 shocks EN/IEC 60068-2-29

Brake Pull-In Power:

22 W

Number Of Mounting Holes:

4

Brake Application Time:

20 ms

Current Consumption:

5000 mA maximum continuous

Mounting Holes Diameter:

6.5 mm

Length:

217.3 mm

Accuracy Error:

+/- 6 arc min

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6

Maximum Axial Force Fa:

170 N tensile force) || 30 N force pressure)

Holding Torque:

6 N.m holding brake || 4 N.m

Device Short Name:

ILS

Discrete Output Voltage:

23...25 V

Associated Fuse Rating:

0.416666666666667

Motor Type:

3-phase stepper motor

Sustainable Offer Status:

Green Premium product

Circle Diameter Of The Mounting Holes:

99 mm

Standards:

IEC 61800-3, Ed 2 || EN/IEC 61800-3 || EN/IEC 50178 || EN 50347 || EN 61800-3:2001, second environment || EN 61800-3 : 2001-02 || IEC 60072-1

Relative Humidity:

15-85 % without condensation

Shaft Diameter:

12 mm

Marking:

CE

Rotor Inertia:

2.4 kg.cm²

Discrete Input Current:

10-10 mA at 24 V safety input
