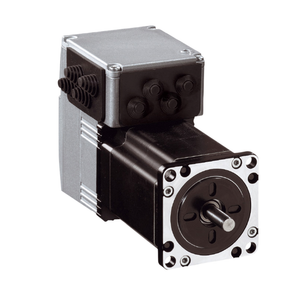

Schneider Electric ILS1U853PB1A0 Lexium Ils Stepper Mot 24 36V P D

(No reviews yet) Write a Review

Write a Review

Schneider Electric ILS1U853PB1A0 Lexium Ils Stepper Mot 24 36V P D

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILS1U853PB1A0

UPC:

3.38912E+12

MPN:

Condition:

New

Discrete Input Current:

10-10 mA at 24 V safety input

[Us] Rated Supply Voltage:

36 V || 24 V

Associated Fuse Rating:

0.416666666666667

Number Of Motor Stacks:

3

Number Of Motor Poles:

6

Service Life In Hours:

20000 h bearing

Motor Flange Size:

85 mm

Range Of Product:

Lexium integrated drive

Gear Box Type:

without

Protection Type:

short circuit of the output voltage || overload of output voltage || safe torque off

Centring Collar Diameter:

60 mm

Communication Interface:

pulse/direction 24 V, Integrated

Number Of Mounting Holes:

4

Circle Diameter Of The Mounting Holes:

99 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Centring Collar Depth:

2 mm

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Circularity Profile:

ENVEOLI1411002EN

Holding Brake:

without

Nominal Speed:

120 rpm 36 V || 60 rpm 24 V

Phase:

single phase

Supply Voltage Limits:

18-40 V

Mounting Holes Diameter:

6.5 mm

China Rohs Regulation:

X

Network Type:

DC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Mechanical Speed:

1000 rpm

Type Of Cooling:

natural convection

Net Weight:

4.7 kg

Maximum Switching Current:

100 mA per output || 200 mA total

Product Or Component Type:

motion integrated drive

Feedback Type:

index pulse

Voltage State 1 Guaranteed:

15...30 V

Shaft Diameter:

14 mm

Sustainable Offer Status:

Green Premium product

Warranty:

18 months

Electrical Connection:

printed circuit board connector

Voltage State 0 Guaranteed:

-3...4.5 V

Maximum Axial Force Fa:

170 N tensile force) || 30 N force pressure)

Environmental Disclosure:

ENVPEP1411002EN

Second Shaft:

without second shaft end

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Holding Torque:

6 N.m

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Ambient Air Temperature For Operation:

50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)

Accuracy Error:

+/- 6 arc min

Speed Feedback Resolution:

1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036° || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps

Current Consumption:

5000 mA maximum continuous

Device Short Name:

ILS

Winding Type:

medium speed of rotation and medium torque

Pvc Free:

Yes

Ambient Air Temperature For Storage:

-25-70 °C

Product Certifications:

UL || cUL || TÜV

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Standards:

IEC 61800-3 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 50347 || EN 61800-3 : 2001-02 || IEC 50178 || IEC 61800-3, Ed 2

Length:

200.6 mm

Maximum Radial Force Fr:

110 N

Motor Type:

3-phase stepper motor

Marking:

CE

Discrete Output Voltage:

23...25 V

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Shaft Length:

30 mm

Rotor Inertia:

3.3 kg.cm²

Peak Stall Torque:

6 N.m

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Continuous Stall Torque:

6 N.m

Mounting Support:

flange

Nominal Torque:

6 N.m

Shaft End:

untapped

Relative Humidity:

15-85 % without condensation

Input/Output Type:

4 signals (each be used as input or output)
