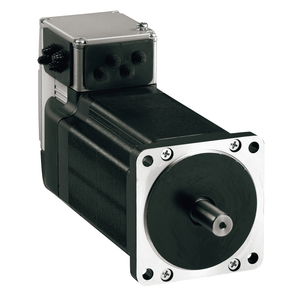

Schneider Electric ILS2T853PB1A0 Lexium Ils Stepper Mot 24 48V Modtcp

SKU:

ILS2T853PB1A0

UPC:

3606485189970

MPN:

Condition:

New

Range Of Product:

Lexium integrated drive

[Us] Rated Supply Voltage:

48 V || 24 V

Number Of Motor Poles:

6

Peak Stall Torque:

6 N.m

Rohs Exemption Information:

Yes

Number Of Mounting Holes:

4

Circle Diameter Of The Mounting Holes:

99 mm

Winding Type:

medium speed of rotation and medium torque

Gear Box Type:

without

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Centring Collar Diameter:

60 mm

Pvc Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Phase:

single phase

Shaft Length:

30 mm

Speed Feedback Resolution:

20000 points/turn

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Associated Fuse Rating:

16 A

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Supply Voltage Limits:

18-55 V

Holding Torque:

6 N.m

Accuracy Error:

+/- 6 arc min

Second Shaft:

without second shaft end

Maximum Mechanical Speed:

2000 rpm

Standards:

EN 50347 || EN 61800-3:2001, second environment || EN 61800-3 : 2001-02 || EN/IEC 61800-3 || EN/IEC 50178 || IEC 61800-3, Ed 2 || IEC 60072-1

Type Of Cooling:

natural convection

Relative Humidity:

15-85 % without condensation

Input/Output Type:

4 signals (each be used as input or output)

Voltage State 0 Guaranteed:

-3...4.5 V

Maximum Axial Force Fa:

170 N tensile force) || 30 N force pressure)

Maximum Radial Force Fr:

110 N

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Certifications:

UL || TÜV || cUL

Product Or Component Type:

motion integrated drive

Motor Flange Size:

85 mm

Service Life In Hours:

20000 h bearing

Motor Type:

3-phase stepper motor

Protection Type:

safe torque off || short circuit of the output voltage || overload of output voltage

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Communication Interface:

Modbus TCP, Integrated

Electrical Connection:

printed circuit board connector

Ip Degree Of Protection:

shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP54 EN/IEC 60034-5

Number Of Motor Stacks:

3

Shaft Diameter:

14 mm

Maximum Switching Current:

100 mA per output || 200 mA total

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Length:

200.6 mm

Discrete Input Current:

10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface

Nominal Torque:

6 N.m

Feedback Type:

index pulse

Shaft End:

untapped

Network Type:

DC

Circularity Profile:

ENVEOLI1411002EN

Holding Brake:

without

Rotor Inertia:

3.3 kg.cm²

Ambient Air Temperature For Storage:

-25-70 °C

Transmission Rate:

10, 100 Mbits

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP1411002EN

Warranty:

18 months

Current Consumption:

5000 mA maximum continuous

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6

Marking:

CE

Net Weight:

4.7 kg

Mounting Holes Diameter:

6.5 mm

China Rohs Regulation:

X

Mounting Support:

flange

Shock Resistance:

150 m/s² 1000 shocks EN/IEC 60068-2-29

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Voltage State 1 Guaranteed:

15...30 V

Nominal Speed:

100 rpm 24 V || 200 rpm 48 V

Discrete Output Voltage:

23...25 V

Centring Collar Depth:

2 mm

Continuous Stall Torque:

6 N.m

Device Short Name:

ILS
