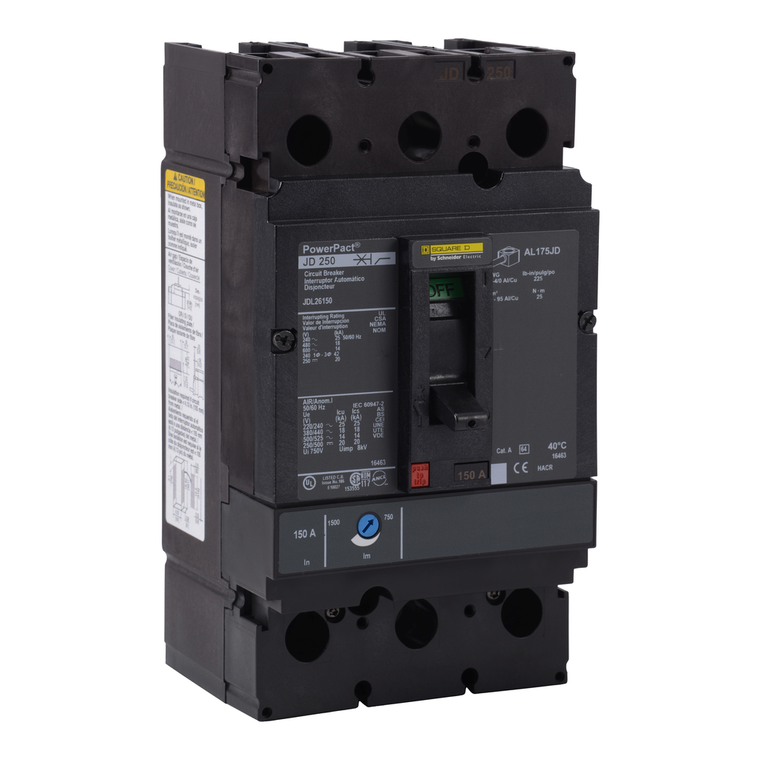

Schneider Electric JDL26250C Molded Case Circuit Breaker 600V 250A
Schneider Electric
$5,377.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric JDL26250C Molded Case Circuit Breaker 600V 250A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Communication Interface:
- Modbus || Ethernet
- Terminal Identifier:
- AL250JD
- Electrical Connection:
- lugs, line || lugs, load
- Breaking Capacity Code:
- D
- Sustainable Offer Status:
- Green Premium product
- Device Application:
- distribution
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Ambient Air Temperature For Operation:
- -2-70 °C
- Product Or Component Type:
- circuit breaker
- Depth:
- 86 mm
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Protection Type:
- overload protection || short-circuit protection
- Mounting Mode:
- unit mount lug)
- Pollution Degree:
- 3 IEC 60947-1
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Pvc Free:
- Yes
- Ip Degree Of Protection:
- front cover IP40
- Product Name:
- PowerPact J
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Control Type:
- toggle
- Magnetic Tripping Current:
- 2500-2500 A
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Mercury Free:
- Yes
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Quality Labels:
- CE
- Net Weight:
- 2.4 kg
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Environmental Disclosure:
- ENVPEP2206031EN
- Trip Unit Technology:
- thermal-magnetic
- Ambient Air Temperature For Storage:
- -50-85 °C
- Height:
- 191 mm
- Circularity Profile:
- ENVEOLI2206031EN
- Product Certifications:
- UL || CSA || NOM
- Poles Description:
- 2P
- Circuit Breaker Application:
- HACR rated
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Network Frequency:
- 50/60 Hz
- Wire Stripping Length:
- 25 mm
- Width:
- 104 mm
- Range:
- PowerPact
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Suitability For Isolation:
- yes IEC 60947-2
- Magnetic Hold Current:
- 1250 A
- Continuous Current Rating:
- 1
- Utilisation Category:
- category A
- Rohs Exemption Information:
- Yes
- Line Rated Current:
- 250-250 A
- Mounting Support:
- lug
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
