Schneider Electric JDL36150SA Molded Case Circuit Breaker 600V 150A
Schneider Electric
$3,447.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

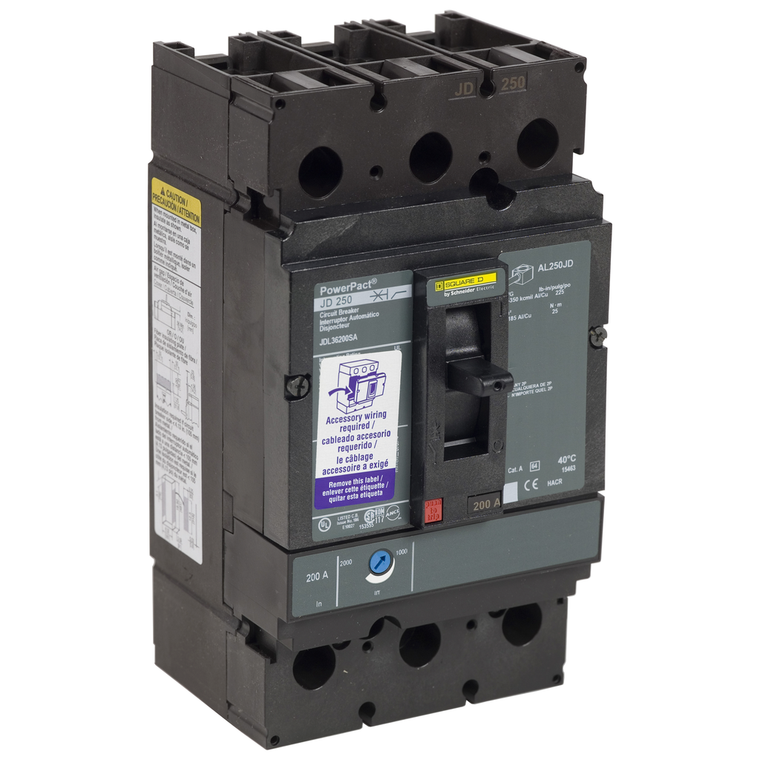

Schneider Electric JDL36150SA Molded Case Circuit Breaker 600V 150A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 150A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a factory installed 120VAC shunt trip. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Pvc Free:
- Yes
- Quality Labels:
- CE
- Ambient Air Temperature For Storage:
- -50-85 °C
- Product Certifications:
- UL || CSA || NOM
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP2206031EN
- Width:
- 104 mm
- Mounting Mode:
- unit mount lug)
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Tightening Torque:
- 25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Electrical Connection:
- lugs, line || lugs, load
- Circularity Profile:
- ENVEOLI2206031EN
- Magnetic Tripping Current:
- 1750-1750 A
- Mercury Free:
- Yes
- Device Application:
- distribution
- Network Frequency:
- 50/60 Hz
- Communication Interface:
- Modbus || Ethernet
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Awg Gauge:
- AWG 4...AWG 4/0 aluminium/copper terminal
- Rohs Exemption Information:
- Yes
- Mounting Support:
- lug
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Ambient Air Temperature For Operation:
- -2-70 °C
- Pollution Degree:
- 3 IEC 60947-1
- Suitability For Isolation:
- yes IEC 60947-2
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Breaking Capacity Code:
- D
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Trip Unit Technology:
- thermal-magnetic
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Continuous Current Rating:
- 0.8
- Depth:
- 86 mm
- Product Or Component Type:
- circuit breaker
- Poles Description:
- 3P
- Wire Stripping Length:
- 25 mm
- Range:
- PowerPact
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Ip Degree Of Protection:
- front cover IP40
- Magnetic Hold Current:
- 750 A
- Protection Type:
- overload protection || short-circuit protection
- Control Type:
- toggle
- Product Name:
- PowerPact J
- Eu Rohs Directive:
- Compliant with Exemptions
- Accessory / Separate Part Type:
- shunt trip 110...130 V AC compartment
- Net Weight:
- 2.4 kg
- Utilisation Category:
- category A
- Line Rated Current:
- 150-150 A
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Terminal Identifier:
- AL175JD
- Circuit Breaker Application:
- HACR rated
- Sustainable Offer Status:
- Green Premium product
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Height:
- 191 mm
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
