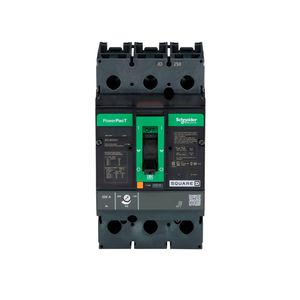

Schneider Electric JDL36225 Molded Case Circuit Breaker 600V 225A

Schneider Electric JDL36225 Molded Case Circuit Breaker 600V 225A

Schneider Electric
SKU:
JDL36225
|
UPC:
785901623175
Availability:
Contact us to confirm availability and lead times.
$2,730.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 225A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Quality Labels:
CE
Depth:
86 mm
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Communication Interface:
Modbus || Ethernet
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Eu Rohs Directive:
Compliant with Exemptions
Pvc Free:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Mercury Free:
Yes
Breaking Capacity Code:
D
Warranty:
18 months
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Network Frequency:
50/60 Hz
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Continuous Current Rating:
0.8
Sustainable Offer Status:
Green Premium product
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Protection Type:
overload protection || short-circuit protection
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage:
-50-85 °C
Utilisation Category:
category A
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Pollution Degree:
3 IEC 60947-1
Circularity Profile:
ENVEOLI2206031EN
Range:
PowerPact
Mounting Mode:
unit mount lug)
Mounting Support:
lug
Environmental Disclosure:
ENVPEP2206031EN
Net Weight:
2.4 kg
Device Application:
distribution
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Local Signalling:
switched off (OFF) 1 trip indicator green)
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Magnetic Tripping Current:
2250-2250 A
Mounting Height:
4.5 in
Phase Connection:
ABC
Width:
104 mm
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Magnetic Hold Current:
1125 A
Terminal Identifier:
AL250JD
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Control Type:
toggle
Height:
191 mm
Ambient Air Temperature For Operation:
-2-70 °C
Poles Description:
3P
Trip Unit Technology:
thermal-magnetic
Product Certifications:
UL || CSA || NOM
Electrical Connection:
lugs, line || lugs, load
Ip Degree Of Protection:
front cover IP40
Product Name:
PowerPact J
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes IEC 60947-2
Line Rated Current:
225-225 A
Wire Stripping Length:
25 mm
