Schneider Electric JGA262002 Molded Case Circuit Breaker 600V 200A
Schneider Electric
$3,372.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

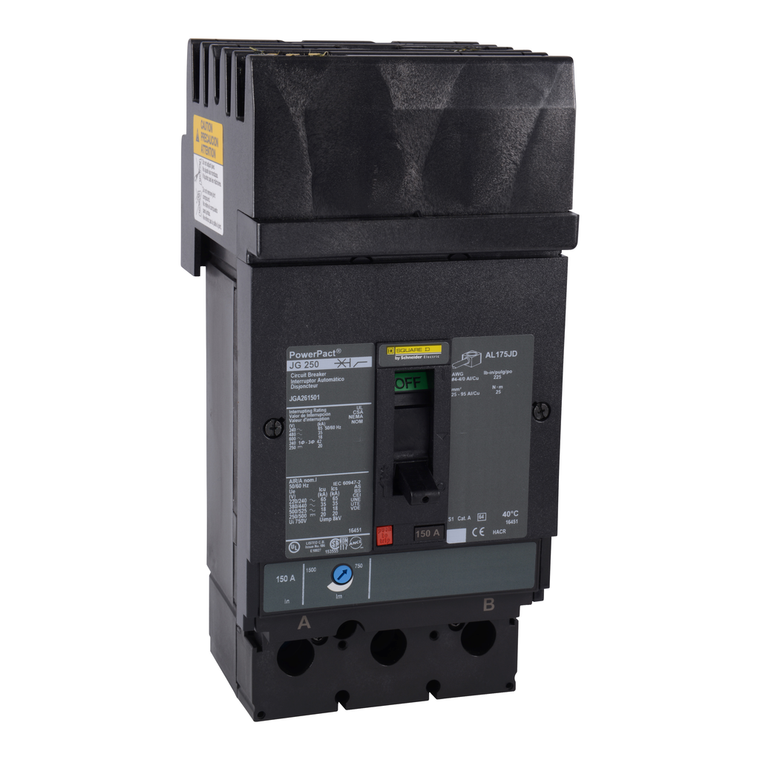

Schneider Electric JGA262002 Molded Case Circuit Breaker 600V 200A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 200A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Continuous Current Rating:
- 0.8
- Height:
- 191 mm
- Sustainable Offer Status:
- Green Premium product
- Electrical Connection:
- I-Line connection, line || lugs, load
- Product Certifications:
- UL || CSA || NOM
- Breaking Capacity Code:
- G
- Ambient Air Temperature For Storage:
- -50-85 °C
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Trip Unit Technology:
- thermal-magnetic
- Terminal Identifier:
- AL250JD
- Pollution Degree:
- 3 IEC 60947-1
- Utilisation Category:
- category A
- Protection Type:
- overload protection || short-circuit protection
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Width:
- 104 mm
- Product Name:
- PowerPact J
- Device Application:
- distribution
- Pvc Free:
- Yes
- Magnetic Tripping Current:
- 2000-2000 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Control Type:
- toggle
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Circularity Profile:
- ENVEOLI2206031EN
- Mounting Mode:
- I-Line bracket)
- Mercury Free:
- Yes
- Poles Description:
- 2P
- Mounting Support:
- bracket
- Ambient Air Temperature For Operation:
- -2-70 °C
- Depth:
- 86 mm
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Wire Stripping Length:
- 25 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Line Rated Current:
- 200-200 A
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Suitability For Isolation:
- yes IEC 60947-2
- Environmental Disclosure:
- ENVPEP2206031EN
- Quality Labels:
- CE
- Net Weight:
- 2.4 kg
- Communication Interface:
- Modbus || Ethernet
- Network Frequency:
- 50/60 Hz
- Rohs Exemption Information:
- Yes
- Mounting Height:
- 4.5 in
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Ip Degree Of Protection:
- front cover IP40
- Phase Connection:
- AC
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Magnetic Hold Current:
- 1000 A
- Range:
- PowerPact
- Warranty:
- 18 months
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
