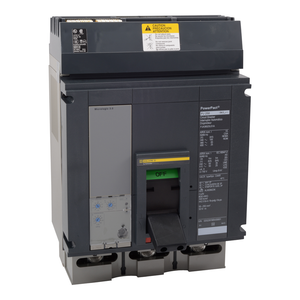

Schneider Electric JGL26250 Molded Case Circuit Breaker 600V 250A
Schneider Electric
$4,251.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Ambient Air Temperature For Operation:
- -2-70 °C
- Net Weight:
- 2.4 kg
- Continuous Current Rating:
- 0.8
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Communication Interface:
- Modbus || Ethernet
- Control Type:
- toggle
- Mercury Free:
- Yes
- Product Name:
- PowerPact J
- Width:
- 104 mm
- Range:
- PowerPact
- Height:
- 191 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Connection:
- lugs, line || lugs, load
- Product Certifications:
- UL || CSA || NOM
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Network Frequency:
- 50/60 Hz
- Utilisation Category:
- category A
- Device Application:
- distribution
- Circuit Breaker Application:
- HACR rated
- Trip Unit Technology:
- thermal-magnetic
- Poles Description:
- 2P
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- front cover IP40
- Suitability For Isolation:
- yes IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Breaking Capacity Code:
- G
- Terminal Identifier:
- AL250JD
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Circularity Profile:
- ENVEOLI2206031EN
- Line Rated Current:
- 250-250 A
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Protection Type:
- overload protection || short-circuit protection
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -50-85 °C
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Wire Stripping Length:
- 25 mm
- Mounting Support:
- lug
- Magnetic Hold Current:
- 1250 A
- Mounting Mode:
- unit mount lug)
- Warranty:
- 18 months
- Quality Labels:
- CE
- Pollution Degree:
- 3 IEC 60947-1
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Product Or Component Type:
- circuit breaker
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Depth:
- 86 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Magnetic Tripping Current:
- 2500-2500 A
- Environmental Disclosure:
- ENVPEP2206031EN
- Pvc Free:
- Yes
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
