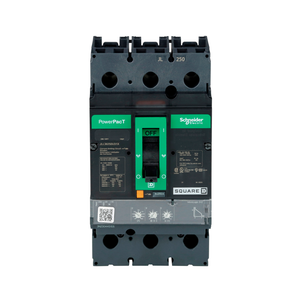

Schneider Electric JGL36250U33X Molded Case Circuit Breaker 600V 250A

Schneider Electric JGL36250U33X Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
JGL36250U33X
|
UPC:
785901506829
Availability:
Contact us to confirm availability and lead times.
$4,270.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Circuit Breaker Application:
HACR rated
Net Weight:
2.4 kg
Breaking Capacity Code:
G
Electrical Connection:
lugs, line || lugs, load
Warranty:
18 months
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Pollution Degree:
3 IEC 60947-1
Network Frequency:
50/60 Hz
Mounting Mode:
unit mount lug)
Pvc Free:
Yes
Control Type:
toggle
Mounting Support:
lug
Width:
104 mm
Range:
PowerPact
Continuous Current Rating:
0.8
Ambient Air Temperature For Operation:
-2-70 °C
Protection Type:
overload protection || short-circuit protection
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Height:
191 mm
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Product Certifications:
UL || CSA || NOM
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Trip Unit Technology:
electronic, standard, MicroLogic 3.2 S, LSI
Quality Labels:
CE
Ip Degree Of Protection:
front cover IP40
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
circuit breaker
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes IEC 60947-2
Mercury Free:
Yes
Depth:
86 mm
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Line Rated Current:
250-250 A
Ambient Air Temperature For Storage:
-50-85 °C
Device Application:
distribution
Wire Stripping Length:
25 mm
Poles Description:
3P
Terminal Identifier:
AL250JD
Trip Unit Name:
MicroLogic 3.2 S
Environmental Disclosure:
ENVPEP2206032EN
Product Name:
PowerPact J
Eu Rohs Directive:
Compliant with Exemptions
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Circularity Profile:
ENVEOLI2206032EN
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Communication Interface:
Modbus || Ethernet
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Utilisation Category:
category A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
