Schneider Electric JGL36250U44X Molded Case Circuit Breaker 600V 250A
Schneider Electric
$6,149.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

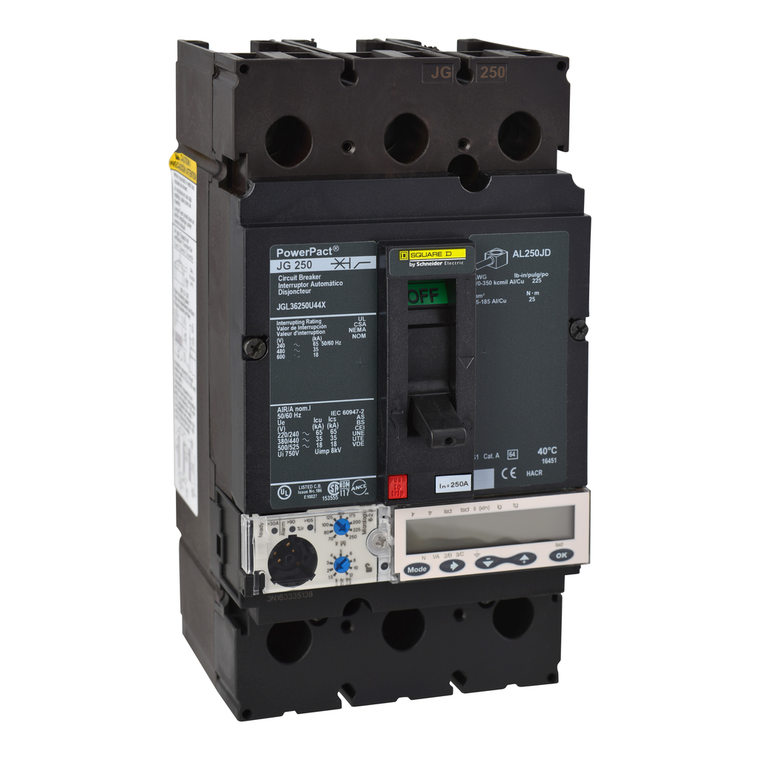

Schneider Electric JGL36250U44X Molded Case Circuit Breaker 600V 250A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Ammeter with a 6.2A trip unit and an LSIG function with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Protection Type:
- overload protection || short-circuit protection
- Quality Labels:
- CE
- Network Frequency:
- 50/60 Hz
- Product Certifications:
- UL || CSA || NOM
- Height:
- 191 mm
- Range:
- PowerPact
- Poles Description:
- 3P
- Continuous Current Rating:
- 0.8
- Net Weight:
- 2.4 kg
- Electrical Connection:
- lugs, line || lugs, load
- Environmental Disclosure:
- ENVPEP2206032EN
- Circularity Profile:
- ENVEOLI2206032EN
- Breaking Capacity Code:
- G
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Terminal Identifier:
- AL250JD
- Eu Rohs Directive:
- Compliant with Exemptions
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Mercury Free:
- Yes
- Product Or Component Type:
- circuit breaker
- Width:
- 104 mm
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Rohs Exemption Information:
- Yes
- Wire Stripping Length:
- 25 mm
- Mounting Support:
- lug
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Line Rated Current:
- 250-250 A
- Ambient Air Temperature For Storage:
- -50-85 °C
- Device Application:
- distribution
- Mounting Mode:
- unit mount lug)
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Trip Unit Name:
- MicroLogic 6.2 A
- Utilisation Category:
- category A
- Warranty:
- 18 months
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Communication Interface:
- Modbus || Ethernet
- Trip Unit Technology:
- electronic, ammeter, MicroLogic 6.2 A, LSIG
- Circuit Breaker Application:
- HACR rated
- Ip Degree Of Protection:
- front cover IP40
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Control Type:
- toggle
- Ambient Air Temperature For Operation:
- -2-70 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Suitability For Isolation:
- yes IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Product Name:
- PowerPact J
- Depth:
- 86 mm
- Pollution Degree:
- 3 IEC 60947-1
- Pvc Free:
- Yes
