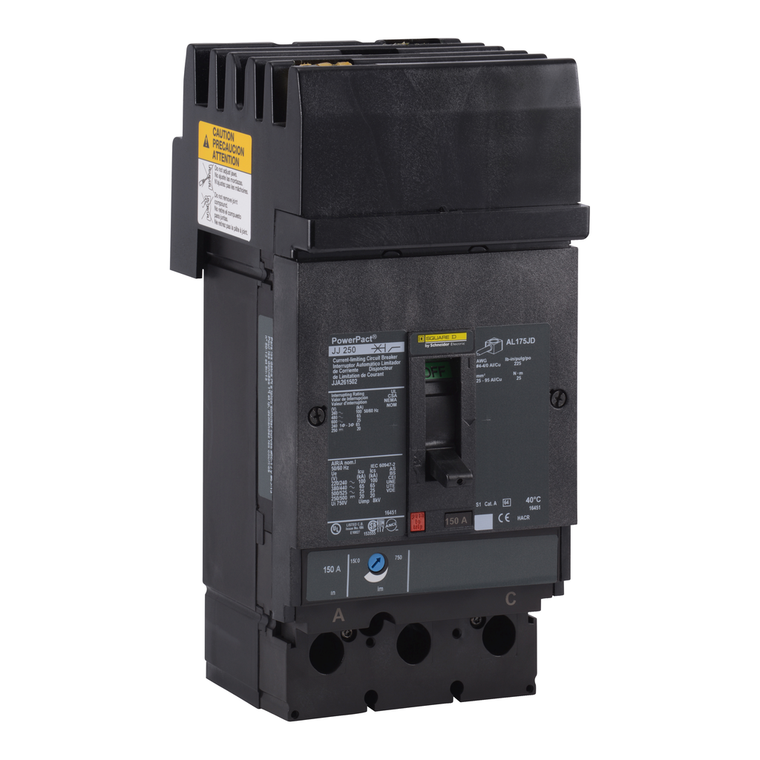

Schneider Electric JJA262002 Molded Case Circuit Breaker 600V 200A
Schneider Electric
$4,904.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 200A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Terminal Identifier:
- AL250JD
- Electrical Connection:
- I-Line connection, line || lugs, load
- Ip Degree Of Protection:
- front cover IP40
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Breaking Capacity Code:
- J
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Phase Connection:
- AC
- Control Type:
- toggle
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Rohs Exemption Information:
- Yes
- Product Name:
- PowerPact J
- Wire Stripping Length:
- 25 mm
- Ambient Air Temperature For Operation:
- -2-70 °C
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Trip Unit Technology:
- thermal-magnetic
- Mounting Mode:
- I-Line bracket)
- Line Rated Current:
- 200-200 A
- Magnetic Tripping Current:
- 2000-2000 A
- Mercury Free:
- Yes
- Warranty:
- 18 months
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Depth:
- 86 mm
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Net Weight:
- 2.4 kg
- Range:
- PowerPact
- Width:
- 104 mm
- Quality Labels:
- CE
- Protection Type:
- overload protection || short-circuit protection
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Pvc Free:
- Yes
- Continuous Current Rating:
- 0.8
- Utilisation Category:
- category A
- Magnetic Hold Current:
- 1000 A
- Environmental Disclosure:
- ENVPEP2206031EN
- Poles Description:
- 2P
- Mounting Support:
- bracket
- Eu Rohs Directive:
- Compliant with Exemptions
- Communication Interface:
- Modbus || Ethernet
- Device Application:
- distribution
- Ambient Air Temperature For Storage:
- -50-85 °C
- Height:
- 191 mm
- Product Certifications:
- UL || CSA || NOM
- Network Frequency:
- 50/60 Hz
- Mounting Height:
- 4.5 in
- Pollution Degree:
- 3 IEC 60947-1
- Circularity Profile:
- ENVEOLI2206031EN
- Suitability For Isolation:
- yes IEC 60947-2
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
