Schneider Electric JJF36250 Molded Case Circuit Breaker 600V 250A
Schneider Electric
$10,857.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

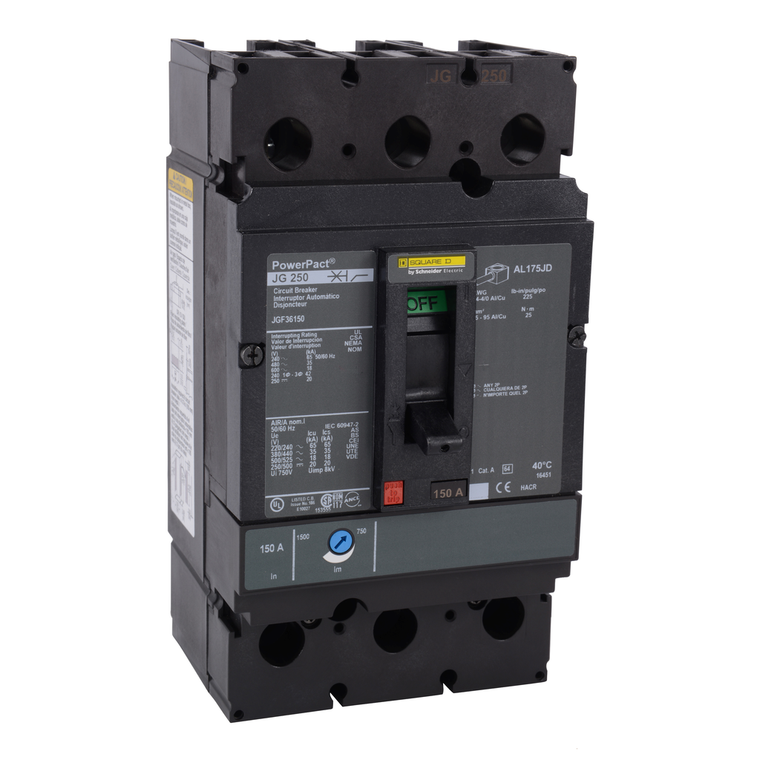

Schneider Electric JJF36250 Molded Case Circuit Breaker 600V 250A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Net Weight:
- 2.4 kg
- Wire Stripping Length:
- 25 mm
- Mercury Free:
- Yes
- Width:
- 104 mm
- Product Or Component Type:
- circuit breaker
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -2-70 °C
- Line Rated Current:
- 250-250 A
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Continuous Current Rating:
- 0.8
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Poles Description:
- 3P
- Product Name:
- PowerPact J
- Product Certifications:
- UL || CSA || NOM
- Circuit Breaker Application:
- HACR rated
- Range:
- PowerPact
- Mounting Support:
- busbar
- Eu Rohs Directive:
- Compliant with Exemptions
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Ip Degree Of Protection:
- front cover IP40
- Warranty:
- 18 months
- Communication Interface:
- Modbus || Ethernet
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Mounting Mode:
- unit mount busbar)
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Pollution Degree:
- 3 IEC 60947-1
- Network Frequency:
- 50/60 Hz
- Height:
- 191 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Control Type:
- toggle
- Magnetic Tripping Current:
- 2500-2500 A
- Environmental Disclosure:
- ENVPEP2206031EN
- Terminal Identifier:
- AL250JD
- Electrical Connection:
- busbar connection, line || busbar connection, load
- Breaking Capacity Code:
- J
- Phase Connection:
- BC
- Depth:
- 86 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Trip Unit Technology:
- thermal-magnetic
- Rohs Exemption Information:
- Yes
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Utilisation Category:
- category A
- Suitability For Isolation:
- yes IEC 60947-2
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Magnetic Hold Current:
- 1250 A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Device Application:
- distribution
- Mounting Height:
- 4.5 in
- Protection Type:
- overload protection || short-circuit protection
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Circularity Profile:
- ENVEOLI2206031EN
- Quality Labels:
- CE
- Pvc Free:
- Yes
