Schneider Electric

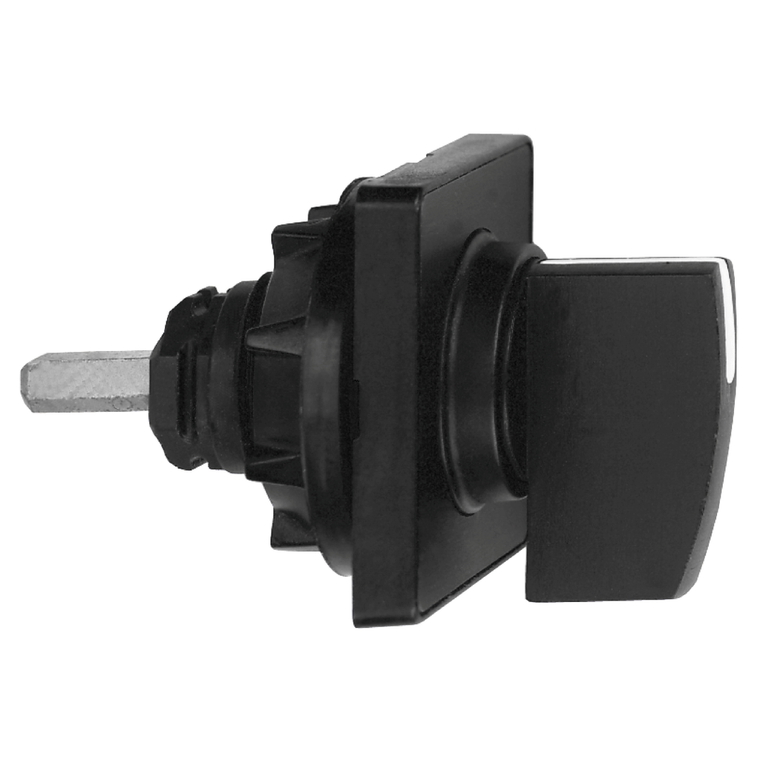

Schneider Electric KAA2H Operator

SKU:

KAA2H

UPC:

3389110980745

MPN:

Condition:

New

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Length:

35 mm

Toxic Heavy Metal Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Cam Switch Head Type:

with bezel Ø 38 mm, plastic

Net Weight:

0.048 kg

Ip Degree Of Protection:

IP65 conforming to IEC 529 || IP65 conforming to NF C 20-010

Cad Overall Height:

38 mm

Vibration Resistance:

5 gn 10-150 Hz)IEC 68-2-6

Product Or Component Type:

cam switch operating head

Cad Overall Depth:

77 mm

Ambient Air Temperature For Operation:

-25-55 °C

Ambient Air Temperature For Storage:

-40-70 °C

Rohs Exemption Information:

Yes

Product Compatibility:

front mounting bodies 12 and 20 A Ø 22 mm hole

Cad Overall Width:

38 mm

Component Name:

KAA

Presentation Of Legend:

with mat black

Mercury Free:

Yes

Warranty:

18 months

Reach Free Of Svhc:

Yes

Mechanical Durability:

1000000 cycles

Protective Treatment:

TC

Range Of Product:

Harmony Series K

Rotary Handle Padlocking:

without

Compatibility Code:

KAA

Shock Resistance:

30 gn IEC 68-2-27

Type Of Operator:

Black handle 35 mm

Datasheet:

View
