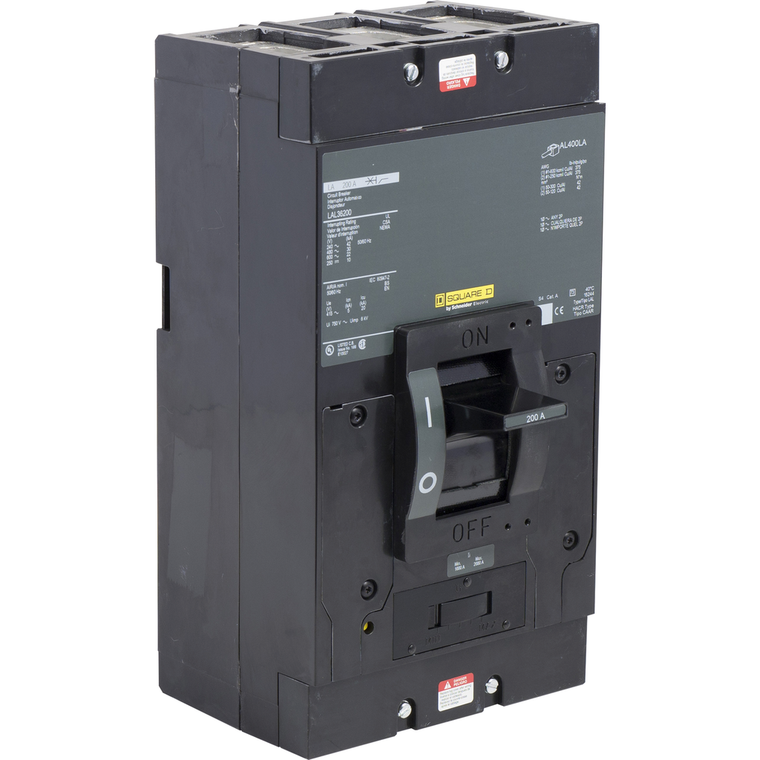

Schneider Electric LAL26200MB Molded Case Circuit Breaker 600V 200A

Schneider Electric LAL26200MB Molded Case Circuit Breaker 600V 200A

Schneider Electric
SKU:
LAL26200MB
|
UPC:
785901402428
Availability:
Contact us to confirm availability and lead times.
$3,807.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 2 pole unit mount breaker, 200A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker MB suffix indicates a panel main breaker and has a shorter handle so that the panel door can close. LA breakers are UL 489, CSA, IEC certified. .
Additional Information
Circuit Breaker Application:
HACR rated
Circularity Profile:
N/A
Operator Profile:
short lever
Sustainable Offer Status:
Green Premium product
Tightening Torque:
13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
Product Or Component Type:
circuit breaker
Warranty:
18 months
Height:
11 in
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Depth:
5.84 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Line Rated Current:
200 A
Mounting Mode:
unit mount
Eu Rohs Directive:
Compliant with Exemptions
Range:
PowerPact
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
6 in
Terminal Identifier:
AL400LA
Magnetic Hold Current:
1000 A
Electrical Connection:
lugs, load || lugs, line
Pvc Free:
Yes
Environmental Disclosure:
ENVPEP1410004EN
Poles Description:
2P
Rohs Exemption Information:
Yes
Product Certifications:
IEC || UL Listed || CSA
Trip Unit Technology:
thermal-magnetic
Mercury Free:
Yes
Magnetic Tripping Current:
2000-2000 A
Halogen Content Performance:
Halogen free plastic parts product
Datasheet:
View
