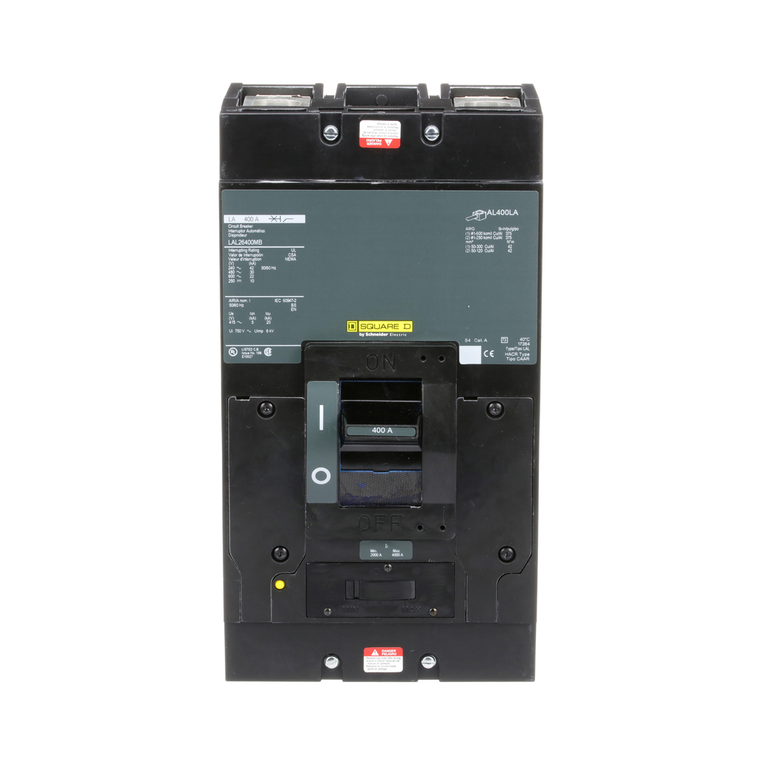

Schneider Electric LAL26400MB Molded Case Circuit Breaker 600V 400A

(No reviews yet) Write a Review
SKU:
LAL26400MB
UPC:
785901626732
Condition:
New
Halogen Content Performance:
Halogen free plastic parts product
Eu Rohs Directive:
Compliant with Exemptions
Magnetic Tripping Current:
4000-4000 A
Operator Profile:
short lever
Depth:
5.84 in
Tightening Torque:
13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
Electrical Connection:
lugs, load || lugs, line
Poles Description:
2P
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Circularity Profile:
N/A
Terminal Identifier:
AL400LA
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Pvc Free:
Yes
Height:
11 in
Environmental Disclosure:
ENVPEP1410004EN
Mounting Mode:
unit mount
Width:
6 in
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Or Component Type:
circuit breaker
Sustainable Offer Status:
Green Premium product
Product Certifications:
CSA || IEC || UL Listed
Rohs Exemption Information:
Yes
Circuit Breaker Application:
HACR rated
Magnetic Hold Current:
2000 A
Trip Unit Technology:
thermal-magnetic
Line Rated Current:
400 A
Catalog:
View
Datasheet:
View
  • Schneider Electric LAL26400MB Molded Case Circuit Breaker 600V 400A
  • Schneider Electric LAL26400MB Molded Case Circuit Breaker 600V 400A
  • Schneider Electric LAL26400MB Molded Case Circuit Breaker 600V 400A
$3,807.00

Description

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 2 pole unit mount breaker, 400A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker MB suffix indicates a panel main breaker and has a shorter handle so that the panel door can close. LA breakers are UL 489, CSA, IEC certified.
