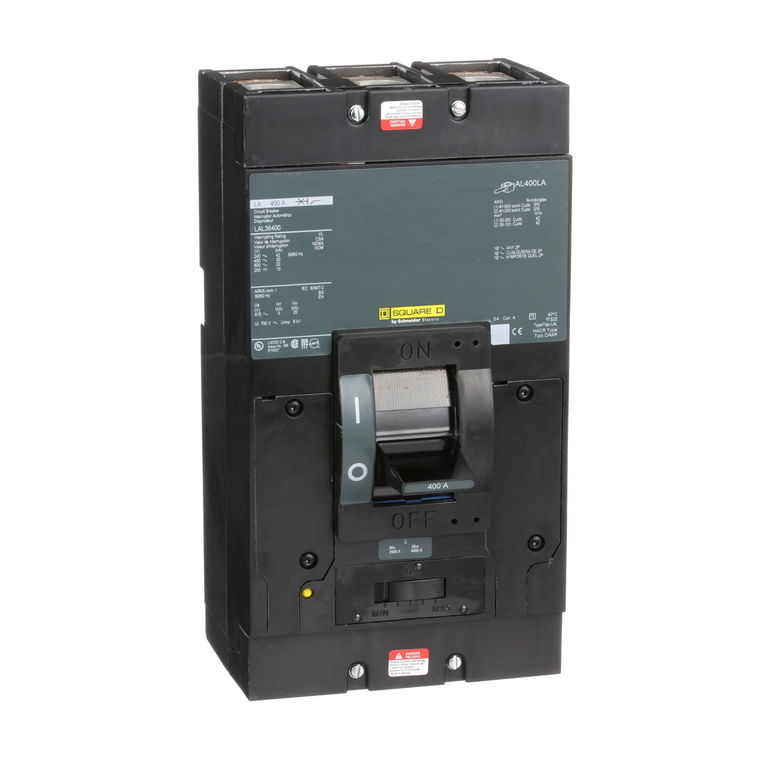

Schneider Electric LAL36400 Molded Case Circuit Breaker 600V 400A
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 400A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. LA breakers are UL 489, CSA, IEC certified.
- Environmental Disclosure:
- ENVPEP1410004EN
- Magnetic Tripping Current:
- 4000-4000 A
- Height:
- 11 in
- Depth:
- 5.84 in
- Line Rated Current:
- 400 A
- Product Certifications:
- IEC || CSA || UL Listed
- Width:
- 6 in
- Magnetic Hold Current:
- 2000 A
- Poles Description:
- 3P
- Terminal Identifier:
- AL400LA
- Tightening Torque:
- 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
- Circuit Breaker Application:
- HACR rated
- Eu Rohs Directive:
- Compliant with Exemptions
- Circularity Profile:
- N/A
- Trip Unit Technology:
- thermal-magnetic
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- circuit breaker
- Pvc Free:
- Yes
- Halogen Content Performance:
- Halogen free plastic parts product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Connection:
- lugs, load || lugs, line
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Warranty:
- 18 months
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mounting Mode:
- unit mount
