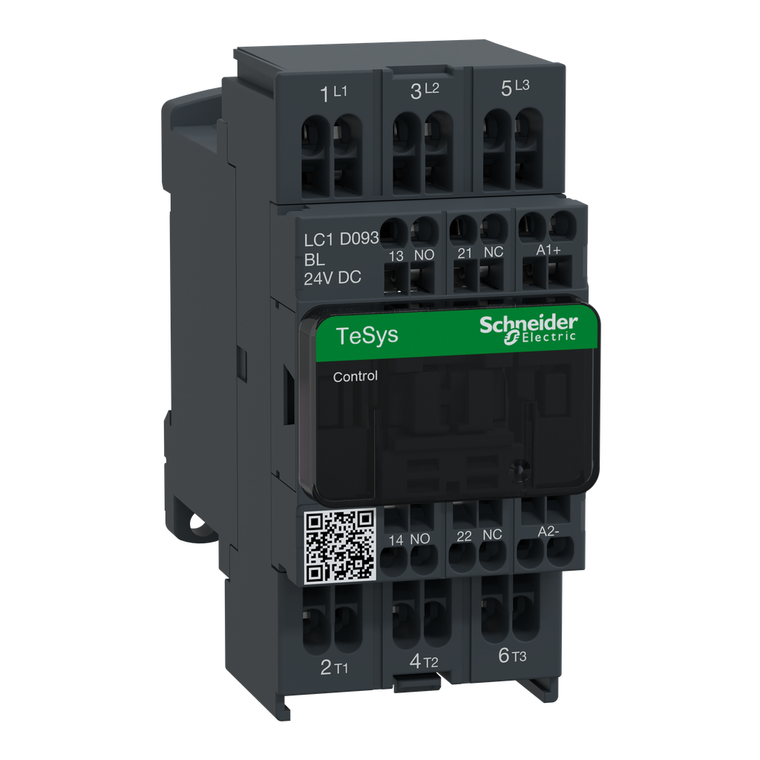

Schneider Electric LC1D093BL IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style
Schneider Electric
$142.80
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LC1D093BL IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 9A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 2HP at 200 to 208VAC, 2HP at 240VAC, 5HP at 480VAC and 7.5HP at 600VAC three phase. Contactor is also rated for 0.33HP at 115VAC and 1HP at 240VAC single phase. Contactor is supplied with a low consumption 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as stanard. The NC contact is mirror certified. Spring terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.15 inches tall, 1.77 inches wide and 3.74 inches deep. It weighs 1.06 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947
- Utilisation Category:
- AC-1 || AC-3 || AC-4 || AC-3e
- Fire Resistance:
- 850°C IEC 60695-2-1
- Signaling Circuit Frequency:
- 25...400 Hz
- Compatibility Code:
- LC1D
- Eu Rohs Directive:
- Compliant with Exemptions
- Flame Retardance:
- V1 conforming to UL 94
- Electrical Durability:
- 0.6 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 9 A AC-3 <= 440 V || 2 Mcycles 9 A AC-3e <= 440 V
- Irms Rated Making Capacity:
- 250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1
- Circularity Profile:
- ENVEOLI1102030EN
- Power Dissipation Per Pole:
- 1.56 W AC-1 || 0.2 W AC-3 || 0.2 W AC-3e
- Motor Power Kw:
- 2.2 kW at 220...230 V AC 50/60 Hz (AC-3) || 4 kW at 380...400 V AC 50/60 Hz (AC-3) || 4 kW at 415 V AC 50/60 Hz (AC-3) || 4 kW at 440 V AC 50/60 Hz (AC-3) || 5.5 kW at 500 V AC 50/60 Hz (AC-3) || 5.5 kW at 660...690 V AC 50/60 Hz (AC-3) || 2.2 kW at
- Toxic Heavy Metal Free:
- Yes
- [Ue] Rated Operational Voltage:
- power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
- Time Constant:
- 40 ms
- Width:
- 45 mm
- Net Weight:
- 0.48 kg
- Inrush Power In W:
- 2.4-2.4 W 20°C)
- Operating Altitude:
- 0...9842.52 ft (0...3000 m)
- Mechanical Durability:
- 30 Mcycles
- Pollution Degree:
- 3
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Product Or Component Type:
- contactor
- Range Of Product:
- TeSys Deca
- Environmental Disclosure:
- ENVPEP110230EN
- Height:
- 99 mm
- Device Short Name:
- LC1D
- Hold-In Power Consumption In W:
- 2.4-2.4 W 20°C
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Minimum Switching Current:
- 5 mA for Signaling circuit
- [Uc] Control Circuit Voltage:
- 24 V DC
- Climatic Withstand:
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Insulation Resistance:
- > 10 MOhm for Signaling circuit
- [Icw] Rated Short-Time Withstand Current:
- 105 A 40°C - 10 s for power circuit || 210 A 40°C - 1 s for power circuit || 30 A 40°C - 10 min for power circuit || 61 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo
- Mounting Support:
- rail || plate
- Warranty:
- 18 months
- Operating Time:
- 77±15 % ms closing || 25±20 % ms opening
- Pole Contact Composition:
- 3 NO
- Associated Fuse Rating:
- 10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 25 A gG at <= 690 V coordination type 1 for power circuit || 20 A gG at <= 690 V coordination type 2 for power circuit
- Average Impedance:
- 2.5 mOhm - Ith 16 A 50 Hz for power circuit
- [Ie] Rated Operational Current:
- 9 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 20 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 9 A (at <60°C) at <= 440 V AC AC-3e for power circuit
- Product Certifications:
- GL || BV || DNV || LROS (Lloyds register of shipping) || RINA || UL || CCC || CSA || GOST || UKCA || CB
- Control Circuit Voltage Limits:
- 0.1...0.3 Uc -40-70°C drop-out DC || 0.8...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC
- Permissible Ambient Air Temperature Around The Device:
- -40-60°C || 60-70°C with derating
- Connections - Terminals:
- power circuit: spring terminals 1 2.5-2.5 mm² - cable stiffness: flexible without cable end || power circuit: spring terminals 2 2.5-2.5 mm² - cable stiffness: flexible without cable end || control circuit: spring terminals 1 2.5-2.5 mm² - cable s
- Coil Technology:
- built-in bidirectional peak limiting diode suppressor
- Control Circuit Type:
- DC low consumption
- Mechanical Robustness:
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
- Protective Cover:
- with
