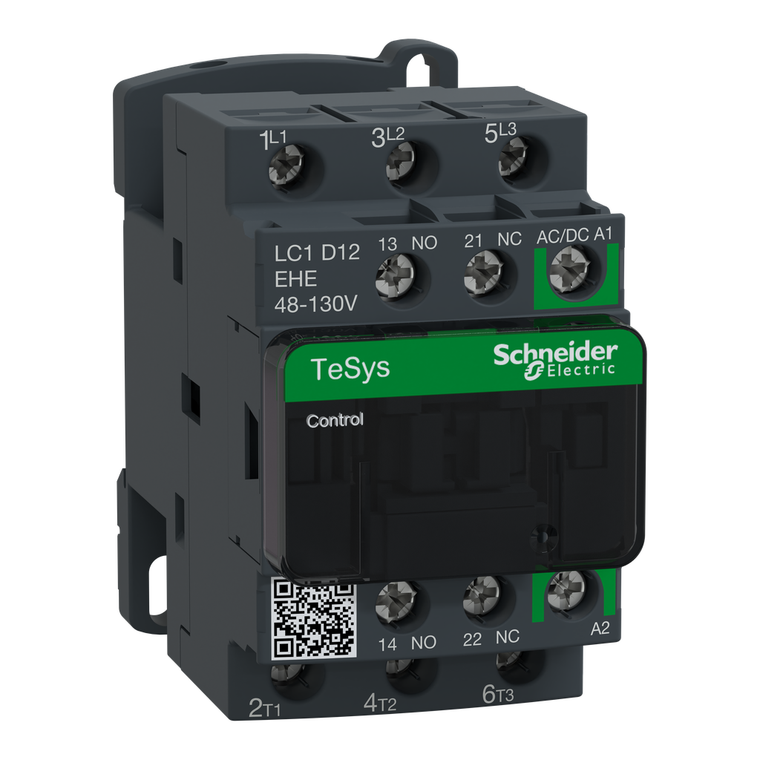

Schneider Electric LC1D12EHE IEC contactor, TeSys Deca Green, nonreversing, 12A, 7.5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 48/130VAC/VDC coil

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D12EHE IEC contactor, TeSys Deca Green, nonreversing, 12A, 7.5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 48/130VAC/VDC coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D12EHE

UPC:

MPN:

LC1D12EHE

Condition:

New

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environmental Disclosure:

ENVPEP1609001EN

Maximum Horse Power Rating:

0.5 hp at 115 V AC 60 Hz for 1 phase motors || 2 hp at 230/240 V AC 60 Hz for 1 phase motors || 3 hp at 200/208 V AC 60 Hz for 3 phase motors || 3 hp at 230/240 V AC 60 Hz for 3 phase motors || 7.5 hp at 460/480 V AC 60 Hz for 3 phase motors || 10 hp

Control Circuit Voltage Limits:

<= 0.1 Uc -40-70°C drop-out AC/DC || 0.85...1.1 Uc -40-60°C operational AC/DC || 1...1.1 Uc 60-70°C operational AC/DC

Flame Retardance:

V1 conforming to UL 94

Operating Altitude:

0...9842.52 ft (0...3000 m)

Circularity Profile:

ENVEOLI1609001EN

Overvoltage Category:

III

Inrush Power In W:

24-24 W 20°C)

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

[Ui] Rated Insulation Voltage:

power circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-1

Control Circuit Type:

AC/DC 50/60 Hz AC/DC electronic

Compatibility Code:

LC1D

Net Weight:

0.373 kg

Eu Rohs Directive:

Compliant with Exemptions

Rohs Exemption Information:

Yes

Depth:

86 mm

Signaling Circuit Frequency:

25...400 Hz

Mounting Support:

plate || rail

Country of Origin:

France

[Uc] Control Circuit Voltage:

48...130 V AC 50/60 Hz || 48...130 V DC

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for Signaling circuit || 25 A (at 60°C) for power circuit

[Icw] Rated Short-Time Withstand Current:

100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms for Signaling circuit || 30 A 40°C - 10 min for power circuit || 61 A 40°C - 1 min for power circuit || 105 A 40°C - 10 s for power circuit || 210 A 40°C - 1

Coil Technology:

built-in bidirectional peak limiting

Poles Description:

3P

Range Of Product:

TeSys Deca

Range:

TeSys || TeSys Deca

Halogen Content Performance:

Halogen free plastic parts & cables product

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Tightening Torque:

control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || power

Motor Power Kw:

3 kW at 220...230 V AC 50 Hz (AC-3) || 5.5 kW at 380...400 V AC 50 Hz (AC-3) || 5.5 kW at 415 V AC 50 Hz (AC-3) || 5.5 kW at 440 V AC 50 Hz (AC-3) || 7.5 kW at 500 V AC 50 Hz (AC-3) || 7.5 kW at 660...690 V AC 50 Hz (AC-3) || 3 kW at 220...230 V AC 5

Rated Breaking Capacity:

250 A at 440 V for power circuit conforming to IEC 60947

Product Certifications:

CCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping) || UKCA

Weight:

0.373 kg

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Irms Rated Making Capacity:

250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Electrical Durability:

2.3 Mcycles 11 A AC-3 <= 440 V || 0.8 Mcycles 25 A AC-1 <= 440 V || 2.3 Mcycles 11 A AC-3e <= 440 V

Ip Degree Of Protection:

IP20 front face IEC 60529

Warranty:

18 months

Auxiliary Contact Composition:

1 NO + 1 NC

Protective Cover:

with

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

Inrush Power In Va:

25-25 VA 50/60 Hz (at 20°C)

Minimum Switching Voltage:

17 V for Signaling circuit

Hold-In Power Consumption In W:

0.8-0.8 W 20°C

Standards:

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
