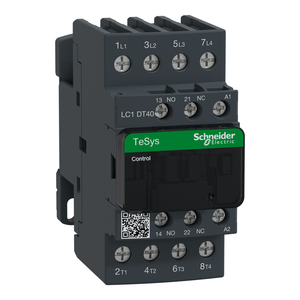

Schneider Electric LC1D258F7 IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 2 NO and 2 NC, 110VAC 50/60Hz coil, open style
Schneider Electric
$246.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LC1D258F7 IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 2 NO and 2 NC, 110VAC 50/60Hz coil, open style
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 40A resistive load rating. Contactor is supplied with a 110 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.13 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
- Coil Technology:
- without built-in suppressor module
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Power Dissipation Per Pole:
- 3.2 W AC-1
- [Ue] Rated Operational Voltage:
- power circuit <= 690 V AC 25...400 Hz
- [Uc] Control Circuit Voltage:
- 110 V AC 50/60 Hz
- Non-Overlap Time:
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Mechanical Durability:
- 15 Mcycles
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947
- Pvc Free:
- Yes
- Range Of Product:
- TeSys Deca
- Pollution Degree:
- 3
- Maximum Operating Rate:
- 3600 cyc/h 60°C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ie] Rated Operational Current:
- 40 A (at <60°C) at <= 440 V AC AC-1 for power circuit
- Protective Cover:
- with
- Insulation Resistance:
- > 10 MOhm for Signaling circuit
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Irms Rated Making Capacity:
- 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 450 A at 440 V for power circuit conforming to IEC 60947
- Country of Origin:
- Singapore
- Signaling Circuit Frequency:
- 25...400 Hz
- Average Impedance:
- 2 mOhm - Ith 40 A 50 Hz for power circuit
- Circularity Profile:
- ENVEOLI110229EN
- Contactor Application:
- resistive load
- Control Circuit Voltage Limits:
- 0.3...0.6 Uc -40-60°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz
- Inrush Power In Va:
- 70-70 VA 60 Hz cos phi 0.75 (at 20°C) || 70-70 VA 50 Hz cos phi 0.75 (at 20°C)
- Product Certifications:
- UL || CSA || CCC || EAC || UKCA || CB || EU-RO-MR by DNV-GL
- Weight:
- 0.425 kg
- Pole Contact Composition:
- 2 NO + 2 NC
- Operating Time:
- 12...22 ms closing || 4...19 ms opening
- Eu Rohs Directive:
- Compliant
- Hold-In Power Consumption In Va:
- 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20°C) || 7-7 VA 50 Hz cos phi 0.3 (at 20°C)
- Operating Altitude:
- 0...9842.52 ft (0...3000 m)
- Minimum Switching Voltage:
- 17 V for Signaling circuit
- Mounting Support:
- rail || plate
- Flame Retardance:
- V1 conforming to UL 94
- Sustainable Offer Status:
- Green Premium product
- Utilisation Category:
- AC-1 || AC-3 || AC-3e || AC-4
- Permissible Ambient Air Temperature Around The Device:
- -40-60°C || 60-70°C with derating
- Associated Fuse Rating:
- 10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 40 A gG at <= 690 V coordination type 2 for power circuit
- Standards:
- EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
- Fire Resistance:
- 850°C IEC 60695-2-1
- Safety Reliability Level:
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Rohs Exemption Information:
- Yes
- Rated Breaking Capacity:
- 450 A at 440 V for power circuit conforming to IEC 60947
- Auxiliary Contact Composition:
- 1 NO + 1 NC
