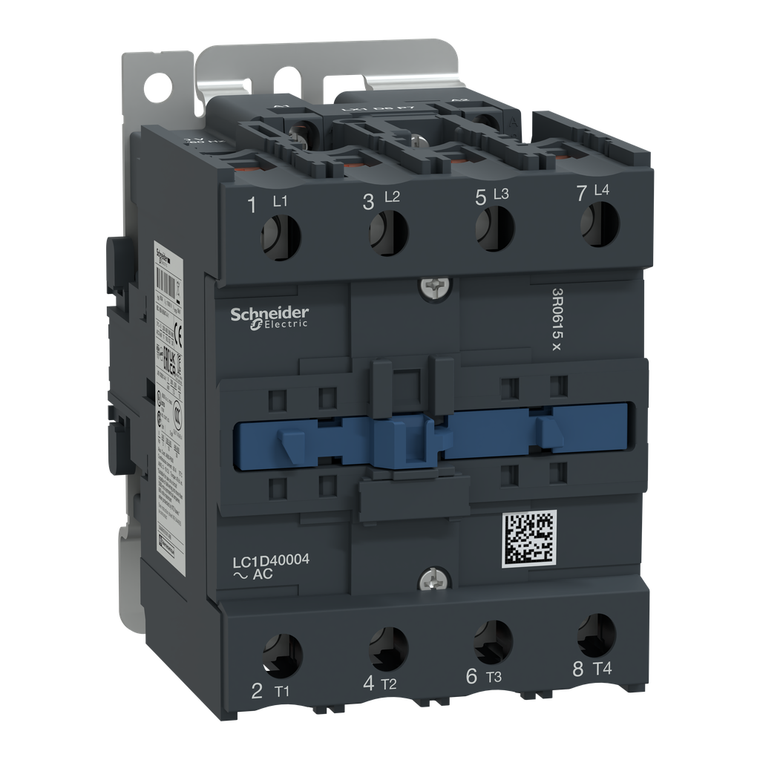

Schneider Electric LC1D40004E7 IEC contactor, TeSys D, nonreversing, 60A resistive, 4 pole, 4 NO, 48VAC 50/60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D40004E7 IEC contactor, TeSys D, nonreversing, 60A resistive, 4 pole, 4 NO, 48VAC 50/60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D40004E7

UPC:

MPN:

LC1D40004E7

Condition:

New

Protective Cover:

with

Warranty:

18 months

Connections - Terminals:

control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminal 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminal 2 1-4 mm² - cable s

Product Certifications:

UL || CSA || BV || GL || GOST || DNV || CCC || RINA || LROS (Lloyds register of shipping) || UKCA

Operating Time:

12...26 ms closing || 4...19 ms opening

Weight:

1.44 kg

Range Of Product:

TeSys Deca

Mercury Free:

Yes

Net Weight:

1.44 kg

Operating Altitude:

9842.52 ft (3000 m) without derating

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Country of Origin:

Czechia

Permissible Ambient Air Temperature Around The Device:

-5-60°C || -40-70°C at Uc

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Rated Breaking Capacity:

800 A at 440 V for power circuit conforming to IEC 60947

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for control circuit || 60 A (at 60°C) for power circuit

Compatibility Code:

LC1D

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contacts || 1.5 ms on energisation between NC and NO contacts

Device Short Name:

LC1D

Associated Fuse Rating:

10 A gG for control circuit conforming to IEC 60947-5-1 || 80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit

Overvoltage Category:

III

Mechanical Robustness:

shocks contactor open 8 Gn for 11 ms) || shocks contactor closed 10 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz)

Coil Technology:

without built-in bidirectional peak limiting diode suppressor

Flame Retardance:

V1 conforming to UL 94

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Width:

85 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Tightening Torque:

control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminal Philips No 2 || power circuit 5 N.m screw clamp terminal flat Ø 6 mm || power circuit 5 N.m screw clamp terminal flat Ø 8 mm

Product Or Component Type:

contactor

Minimum Switching Current:

5 mA for control circuit

Depth:

125 mm

Rohs Exemption Information:

Yes

Average Impedance:

1.5 mOhm - Ith 60 A 50 Hz for power circuit

Utilisation Category:

AC-1 || AC-3 || AC-3e || AC-4

Toxic Heavy Metal Free:

Yes

Sustainable Offer Status:

Green Premium product

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

[Uc] Control Circuit Voltage:

48 V AC 50/60 Hz

Inrush Power In Va:

140-140 VA cos phi 0.75 (at 20°C) || 160-160 VA cos phi 0.75 (at 20°C)

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz

Control Circuit Type:

AC 50/60 Hz standard

Circularity Profile:

N/A

Mounting Support:

plate || rail

Contactor Application:

resistive load

Poles Description:

4P

Pole Contact Composition:

4 NO
