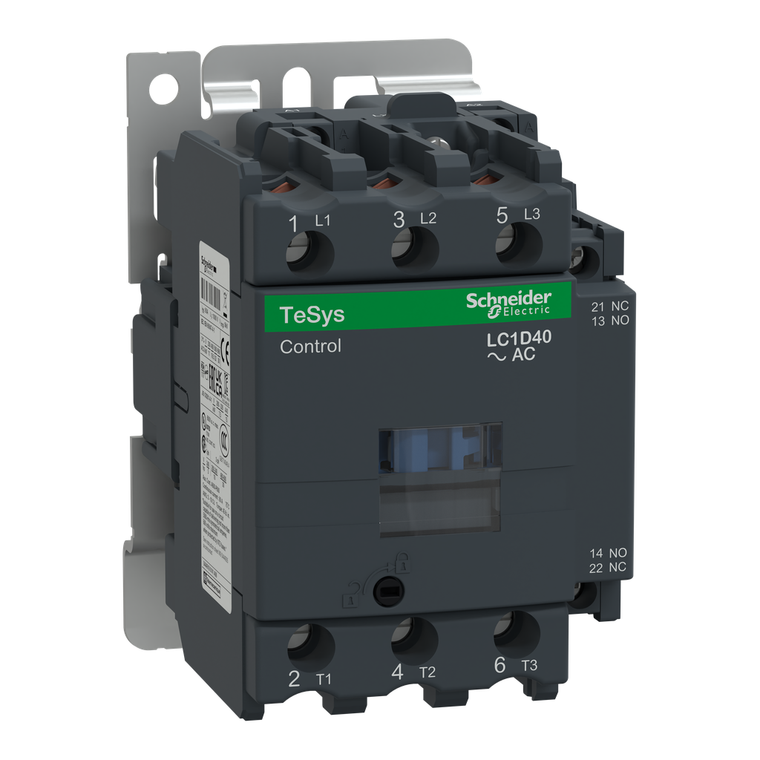

Schneider Electric LC1D40E7 IEC contactor, TeSys D, nonreversing, 40A, 30HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 48VAC 50/60Hz coil, open

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D40E7

UPC:

MPN:

LC1D40E7

Condition:

New

[Uc] Control Circuit Voltage:

48 V AC 50/60 Hz

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Irms Rated Making Capacity:

800 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for control circuit conforming to IEC 60947-5-1

Environmental Disclosure:

ENVPEP110205EN

Fire Resistance:

850°C IEC 60695-2-1

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Operating Altitude:

0...9842.52 ft (0...3000 m)

Mercury Free:

Yes

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Pvc Free:

Yes

Contactor Application:

resistive load || motor control

Product Or Component Type:

contactor

Range:

TeSys

Maximum Operating Rate:

3600 cyc/h 60°C

Range Of Product:

TeSys Deca

Maximum Horse Power Rating:

3 hp at 115 V AC 60 Hz for 1 phase motors || 5 hp at 230/240 V AC 60 Hz for 1 phase motors || 10 hp at 200/208 V AC 60 Hz for 3 phase motors || 10 hp at 230/240 V AC 60 Hz for 3 phase motors || 30 hp at 460/480 V AC 60 Hz for 3 phase motors || 30 hp

[Ui] Rated Insulation Voltage:

control circuit 600 V CSA || control circuit 600 V UL || power circuit 600 V CSA || power circuit 600 V UL || control circuit 690 V IEC 60947-1 || power circuit 690 V IEC 60947-1

Insulation Resistance:

> 10 MOhm for control circuit

Protective Cover:

with

Toxic Heavy Metal Free:

Yes

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for control circuit || 60 A (at 60°C) for power circuit

Mounting Support:

rail || plate

Country of Origin:

France

Compatibility Code:

LC1D

Mechanical Durability:

6000000 cycles

Motor Power Kw:

18.5 kW at 380...400 V AC 50 Hz (AC-3) || 22 kW at 500 V AC 50 Hz (AC-3) || 30 kW at 660...690 V AC 50 Hz (AC-3) || 22 kW at 1000 V AC 50 Hz (AC-3) || 22 kW at 415 V AC 50 Hz (AC-3) || 22 kW at 440 V AC 50 Hz (AC-3) || 11 kW at 220...230 V AC 50 Hz (

Climatic Withstand:

IACS E10 exposure to damp heat

Net Weight:

1.4 kg

Mechanical Robustness:

shocks contactor opened 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz)

Device Short Name:

LC1D

Hold-In Power Consumption In Va:

13-13 VA 60 Hz cos phi 0.3 (at 20°C) || 15-15 VA 50 Hz cos phi 0.3 (at 20°C)

Flame Retardance:

V1 conforming to UL 94

Standards:

EN 60947-4-1 || IEC 60947-4-1 || EN 60947-5-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14

Warranty:

18 months

Utilisation Category:

AC-3 || AC-1 || AC-4 || AC-2 || AC-3e

Product Certifications:

GL || BV || DNV || LROS (Lloyds register of shipping) || RINA || UL || CCC || CSA || GOST || UKCA || CB

Eu Rohs Directive:

Compliant

Tightening Torque:

control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminal Philips No 2 || power circuit 5 N.m screw terminal flat Ø 6 to Ø 8 mm || control circuit 1.7 N.m screw clamp terminal pozidriv No 2

Ip Degree Of Protection:

IP2X IEC 60529 || IP2X VDE 0106

Inrush Power In Va:

140-140 VA cos phi 0.75 (at 20°C) || 160-160 VA cos phi 0.75 (at 20°C)

Overvoltage Category:

III

Power Dissipation Per Pole:

5.4 W AC-1 || 2.4 W AC-3 || 2.4 W AC-3e

Connections - Terminals:

control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: rigid || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable en

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz

Circularity Profile:

N/A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rohs Exemption Information:

Yes
