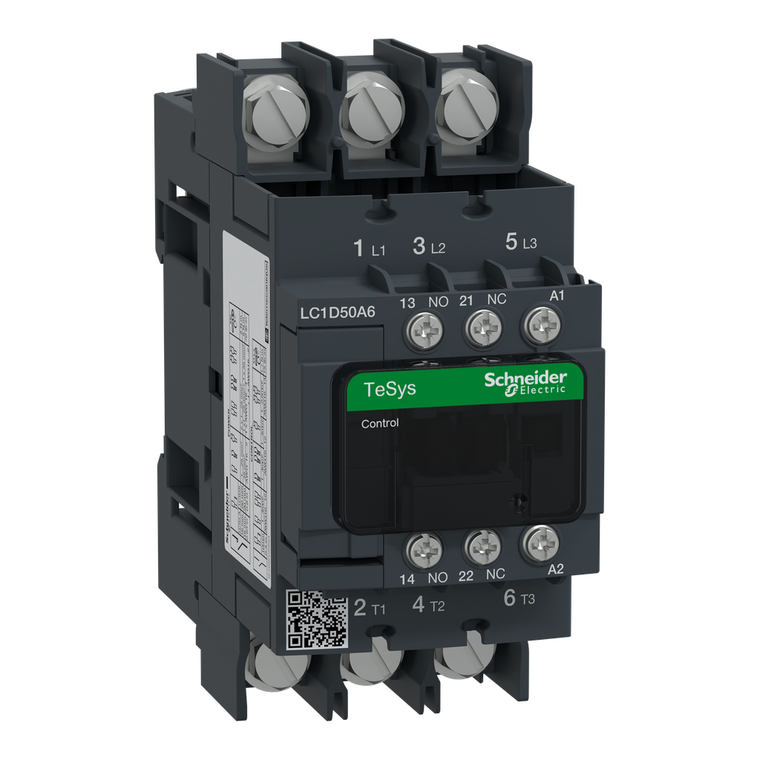

Schneider Electric LC1D50A6F7 IEC contactor, TeSys Deca, nonreversing, 50A, 40HP at 480VAC, 3 phase, 3 pole, 3 NO, 110VAC 50/60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D50A6F7 IEC contactor, TeSys Deca, nonreversing, 50A, 40HP at 480VAC, 3 phase, 3 pole, 3 NO, 110VAC 50/60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D50A6F7

UPC:

MPN:

LC1D50A6F7

Condition:

New

Contactor Application:

resistive load || motor control

Average Impedance:

1.5 mOhm - Ith 80 A 50 Hz for power circuit

Power Dissipation Per Pole:

3.7 W AC-3 || 9.6 W AC-1 || 3.7 W AC-3e

Utilisation Category:

AC-4 || AC-1 || AC-3 || AC-3e

Operating Altitude:

0...9842.52 ft (0...3000 m)

Range:

TeSys || TeSys Deca

Protective Treatment:

THIEC 60068-2-30

Depth:

120 mm

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

[Icw] Rated Short-Time Withstand Current:

400 A 40°C - 10 s for power circuit || 810 A 40°C - 1 s for power circuit || 84 A 40°C - 10 min for power circuit || 208 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms f

Compatibility Code:

LC1D

Pollution Degree:

3

Motor Power Kw:

15 kW at 220...230 V AC 50/60 Hz (AC-3) || 22 kW at 380...400 V AC 50/60 Hz (AC-3) || 30 kW at 500 V AC 50/60 Hz (AC-3) || 33 kW at 660...690 V AC 50/60 Hz (AC-3) || 25 kW at 415 V AC 50/60 Hz (AC-3) || 30 kW at 440 V AC 50/60 Hz (AC-3) || 11 kW at 4

[Ui] Rated Insulation Voltage:

power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL || power circuit 690 V IEC 60947-4-1

Ip Degree Of Protection:

IP20 front face IEC 60529

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 10 Gn for 11 ms)

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Flame Retardance:

V1 conforming to UL 94

[Ie] Rated Operational Current:

50 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 80 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 50 A (at <60°C) at <= 440 V AC AC-3e for power circuit

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Pole Contact Composition:

3 NO

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Net Weight:

0.855 kg

Rated Breaking Capacity:

900 A at 440 V for power circuit conforming to IEC 60947

Auxiliary Contact Composition:

1 NO + 1 NC

Rohs Exemption Information:

Yes

Control Circuit Type:

AC 50/60 Hz

Product Certifications:

CCC || UL || CB Scheme || CSA || CE || UKCA || Marine || EAC

Weight:

0.855 kg

Poles Description:

3P

Climatic Withstand:

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Electrical Durability:

1.45 Mcycles 50 A AC-3 <= 440 V || 1.1 Mcycles 80 A AC-1 <= 440 V || 1.45 Mcycles 50 A AC-3e <= 440 V

Width:

55 mm

Mechanical Durability:

6 Mcycles

Heat Dissipation:

4-5 W at 50/60 Hz

Overvoltage Category:

III

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Reach Free Of Svhc:

Yes

Maximum Operating Rate:

3600 cyc/h 60°C

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Irms Rated Making Capacity:

140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 900 A at 440 V for power circuit conforming to IEC 60947

Fire Resistance:

850°C IEC 60695-2-1

Signaling Circuit Frequency:

25...400 Hz

Environmental Disclosure:

ENVPEP1503009EN

Device Short Name:

LC1D

Country of Origin:

Indonesia

Warranty:

18 months

Connections - Terminals:

control circuit: lugs-ring terminals - external diameter: 8 mm || power circuit: lugs-ring terminals - external diameter: 16.5 mm

Height:

122 mm

Toxic Heavy Metal Free:

Yes
