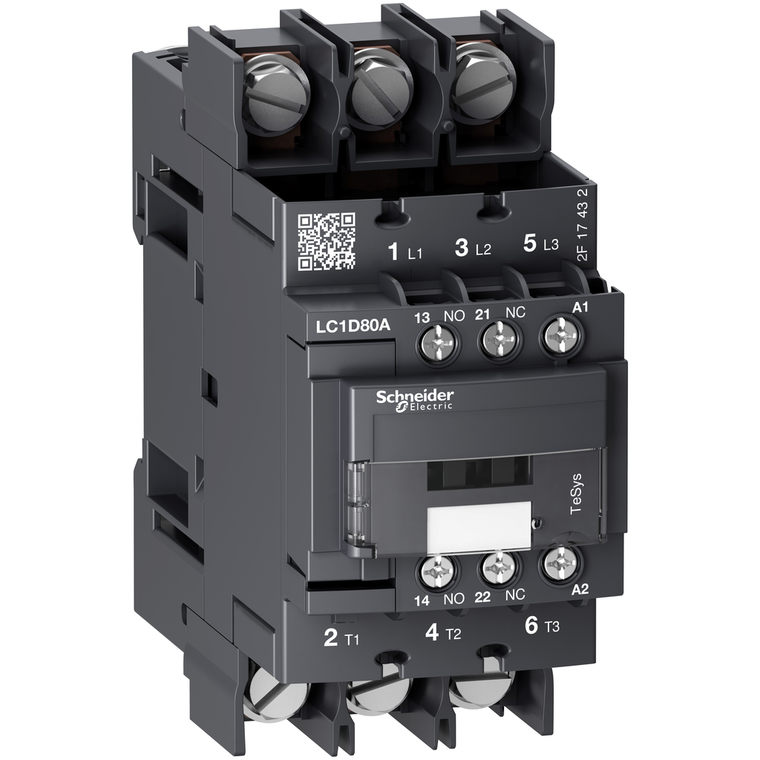

Schneider Electric LC1D80A6LE7 IEC contactor, TeSys Deca, nonreversing, 80A, 40HP at 480VAC, 3 phase, 3 pole, 3 NO, 208VAC 50/60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D80A6LE7 IEC contactor, TeSys Deca, nonreversing, 80A, 40HP at 480VAC, 3 phase, 3 pole, 3 NO, 208VAC 50/60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D80A6LE7

UPC:

MPN:

LC1D80A6LE7

Condition:

New

Range Of Product:

TeSys Deca

Power Dissipation Per Pole:

9.6 W AC-1 || 6.3 W AC-3 || 6.3 W AC-3e

Pollution Degree:

3

Protective Treatment:

THIEC 60068-2-30

Mechanical Durability:

6 Mcycles

Net Weight:

0.86 kg

Protective Cover:

with

Electrical Durability:

0.7 Mcycles 80 A AC-1 <= 440 V || 1 Mcycles 66 A AC-3 <= 440 V || 1 Mcycles 66 A AC-3e <= 440 V

Fire Resistance:

850°C IEC 60695-2-1

[Icw] Rated Short-Time Withstand Current:

520 A 40°C - 10 s for power circuit || 900 A 40°C - 1 s for power circuit || 110 A 40°C - 10 min for power circuit || 260 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms

Minimum Switching Voltage:

17 V for Signaling circuit

Inrush Power In Va:

140-140 VA 60 Hz cos phi 0.75 (at 20°C)

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Connections - Terminals:

control circuit: lugs-ring terminals - external diameter: 8 mm || power circuit: lugs-ring terminals - external diameter: 16.5 mm

Range:

TeSys || TeSys Deca

[Ue] Rated Operational Voltage:

power circuit 690 V AC 25...400 Hz || power circuit 300 V DC

Standards:

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1

Country of Origin:

Indonesia

[Ui] Rated Insulation Voltage:

Signaling circuit 690 V IEC 60947-1 || power circuit 690 V IEC 60947-4-1

Utilisation Category:

AC-1 || AC-4 || AC-3 || AC-3e

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Average Impedance:

1.5 mOhm - Ith 80 A 50 Hz for power circuit

[Uc] Control Circuit Voltage:

208 V AC 60 Hz

Minimum Switching Current:

5 mA for Signaling circuit

Warranty:

18 months

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for Signaling circuit || 80 A (at 60°C) for power circuit

Operating Time:

4...19 ms opening || 12...26 ms closing

Signaling Circuit Frequency:

25...400 Hz

Maximum Horse Power Rating:

5 hp at 115 V AC 60 Hz for 1 phase motors || 10 hp at 230/240 V AC 60 Hz for 1 phase motors || 20 hp at 200/208 V AC 60 Hz for 3 phase motors || 20 hp at 230/240 V AC 60 Hz for 3 phase motors || 40 hp at 460/480 V AC 60 Hz for 3 phase motors || 50 hp

Maximum Operating Rate:

3600 cyc/h 60°C

Width:

55 mm

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 60 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 60 Hz

Tightening Torque:

control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 6 N.m lugs-ring terminals hexagonal 10 mm M6 || control circuit 1.7 N.m screw clamp terminals pozidriv No

Auxiliary Contact Composition:

1 NO + 1 NC

Poles Description:

3P

Contactor Application:

resistive load || motor control

Height:

122 mm

Pvc Free:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Insulation Resistance:

> 10 MOhm for Signaling circuit

Depth:

120 mm

Product Or Component Type:

contactor

Reach Free Of Svhc:

Yes

Heat Dissipation:

4-5 W at 60 Hz

Irms Rated Making Capacity:

140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 1000 A at 440 V AC for power circuit conforming to IEC 60947

Weight:

0.86 kg

Operating Altitude:

0...9842.52 ft (0...3000 m)

Mounting Support:

rail || plate

Device Short Name:

LC1D
