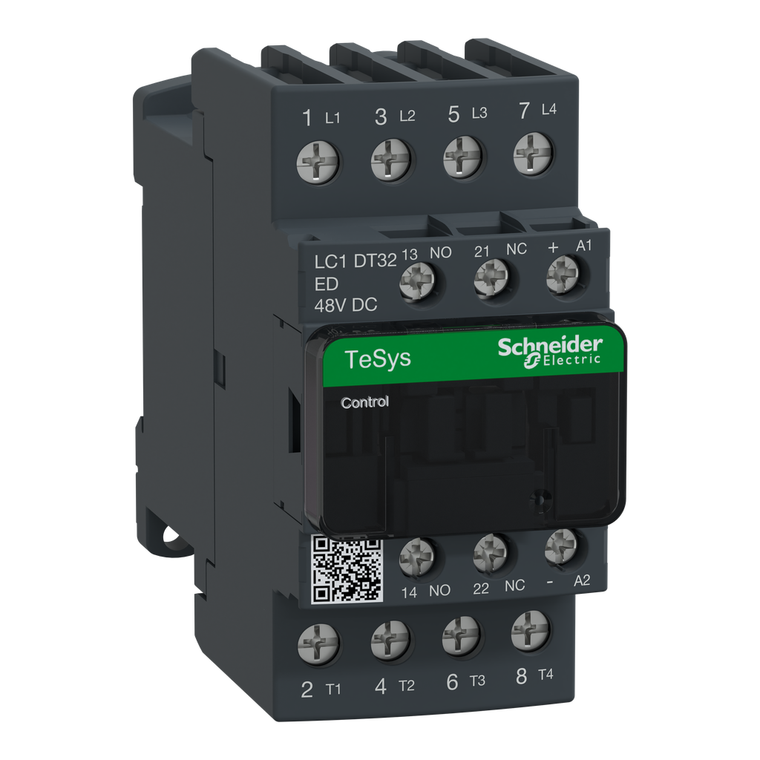

Schneider Electric LC1DT32ED IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 4 NO, 48VDC coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1DT32ED IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 4 NO, 48VDC coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1DT32ED

UPC:

MPN:

LC1DT32ED

Condition:

New

Device Short Name:

LC1D

Mechanical Durability:

30 Mcycles

Time Constant:

28 ms

Insulation Resistance:

> 10 MOhm for Signaling circuit

Environmental Disclosure:

ENVPEP110230EN

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Pvc Free:

Yes

Ip Degree Of Protection:

IP20 front face IEC 60529

Electrical Durability:

1 Mcycles 32 A AC-1 <= 440 V

Sustainable Offer Status:

Green Premium product

Overvoltage Category:

III

Utilisation Category:

AC-1 || AC-3 || AC-3e || AC-4

Product Or Component Type:

contactor

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Width:

45 mm

Hold-In Power Consumption In W:

5.4-5.4 W 20°C

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 50 A gG at <= 690 V coordination type 1 for power circuit || 35 A gG at <= 690 V coordination type 2 for power circuit

Pole Contact Composition:

4 NO

[Ui] Rated Insulation Voltage:

power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL || power circuit 690 V IEC 60947-4-1

Mercury Free:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Country of Origin:

France

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for Signaling circuit || 32 A (at 60°C) for power circuit

Control Circuit Type:

DC standard

Average Impedance:

2.5 mOhm - Ith 32 A 50 Hz for power circuit

Operating Time:

20±20 % ms opening || 63±15 % ms closing

Height:

91 mm

[Icw] Rated Short-Time Withstand Current:

40 A 40°C - 10 min for power circuit || 84 A 40°C - 1 min for power circuit || 145 A 40°C - 10 s for power circuit || 240 A 40°C - 1 s for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo

Net Weight:

0.425 kg

Rohs Exemption Information:

Yes

Tightening Torque:

control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 1.8 N.m screw clamp terminals flat Ø 6 mm || pow

Fire Resistance:

850°C IEC 60695-2-1

Climatic Withstand:

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Circularity Profile:

ENVEOLI1102030EN

[Ie] Rated Operational Current:

32 A (at <60°C) at <= 440 V AC AC-1 for power circuit

Product Certifications:

DNV || GL || CCC || LROS (Lloyds register of shipping) || RINA || BV || GOST || UL || CSA || CB

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 8 Gn for 11 ms)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Signaling Circuit Frequency:

25...400 Hz

Auxiliary Contact Composition:

1 NO + 1 NC

Standards:

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1

Connections - Terminals:

control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - c

Weight:

0.425 kg

Range:

TeSys || TeSys Deca

Operating Altitude:

0...9842.52 ft (0...3000 m)

Protective Treatment:

THIEC 60068-2-30

Minimum Switching Voltage:

17 V for Signaling circuit

Compatibility Code:

LC1D
