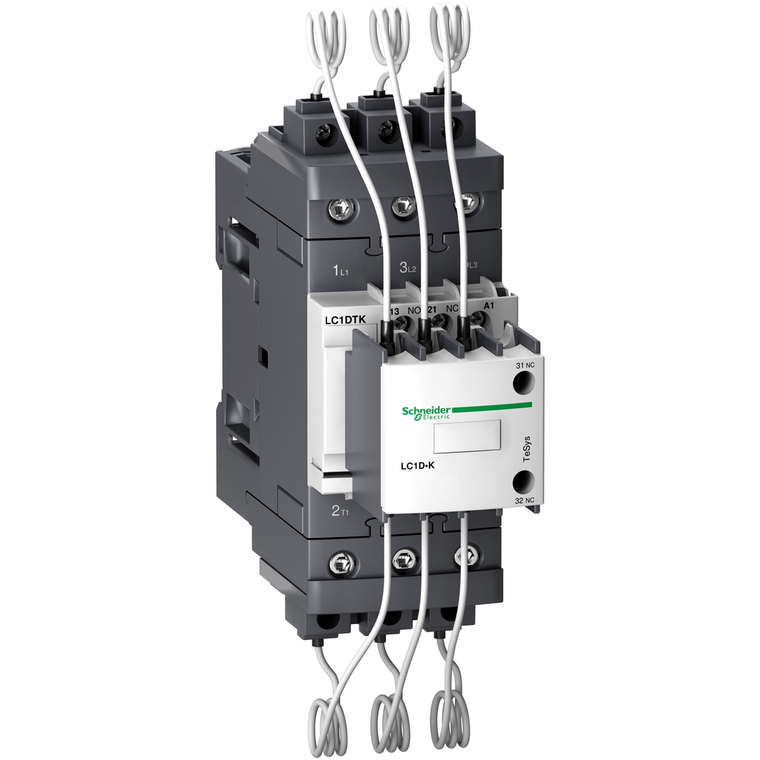

Schneider Electric LC1DTKF7 Capacitor contactor, TeSys Deca, 40 kVAR at 400 V/50 Hz, coil 110 V AC 50/60 Hz

(No reviews yet) Write a Review
SKU:
LC1DTKF7
MPN:
LC1DTKF7
Condition:
New
Poles Description:
3P
Device Application:
control
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Tightening Torque:
control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors 1-25 mm² || power circuit 8 N.m EverLink BTR screw connectors 35-35 mm²
Ambient Air Temperature For Storage:
-60-80°C
Weight:
1.3 kg
Warranty:
18 months
Sustainable Offer Status:
Green Premium product
Range:
TeSys || TeSys Deca
Pole Contact Composition:
3 NO
Auxiliary Contact Composition:
1 NO + 2 NC instantaneous
Eu Rohs Directive:
Compliant
Auxiliary Contacts Type:
mechanically linked 1 NO + 2 NC IEC 60947-5-1
Operating Altitude:
0...9842.52 ft (0...3000 m)
Product Certifications:
IECEE CB Scheme || UL || CSA || UKCA
Electrical Durability:
300000 cycles 400 V || 200000 cycles 690 V
Device Short Name:
LC1DTK
Toxic Heavy Metal Free:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP111274EN
Country of Origin:
France
[Uc] Control Circuit Voltage:
110 V AC 50/60 Hz
Device Location In System:
inside delta interruption || line interruption
Circularity Profile:
N/A
Ambient Air Temperature For Operation:
-5-60°C
Reactive Power Rating:
22 kvar 230-230 V AC 50 Hz 60°C || 40 kvar 400-400 V AC 50 Hz 60°C || 43 kvar 440-440 V AC 50 Hz 60°C || 67 kvar 690-690 V AC 50 Hz 60°C || 20 kvar 230-230 V AC 60 Hz 60°C || 40 kvar 460-460 V AC 60 Hz 60°C || 50 kvar 575-575 V AC 60 Hz 60°C
Control Circuit Type:
AC 50/60 Hz
Product Name:
TeSys LC1D.K || TeSys Deca
Rohs Exemption Information:
Yes
[Ue] Rated Operational Voltage:
power circuit 690 V AC 50/60 Hz
Mounting Support:
DIN rail || plate
Utilisation Category:
AC-6b
Reach Free Of Svhc:
Yes
Ip Degree Of Protection:
IP20 front face IEC 60529
Standards:
EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
Maximum Operating Rate:
240 cyc/h
Product Or Component Type:
capacitor duty contactor
Contactor Application:
power factor correction
Depth:
156 mm
Net Weight:
1.3 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections - Terminals:
control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable en
$1,560.00

Description

TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 40kVAR@400V 50Hz (67kVAR@690V). It provides a 110V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
