Schneider Electric LC2D80B7 TeSys Deca reversing contactor - 3P(3 NO) - AC-3/AC-3e - <= 440 V 80 A - 24 V AC coil

Schneider Electric LC2D80B7 TeSys Deca reversing contactor - 3P(3 NO) - AC-3/AC-3e - <= 440 V 80 A - 24 V AC coil

Schneider Electric
SKU:
LC2D80B7
$925.70
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

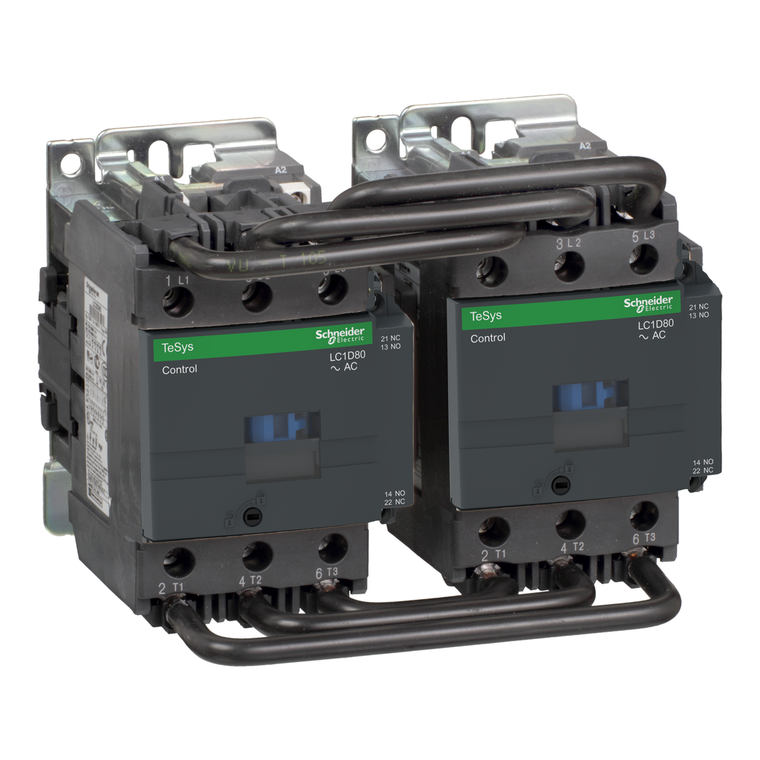

LC2D80B7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 80A AC-3 37kW@400V, it includes a 24V 50/60Hz AC coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D80B7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 37kW@400V. It includes a 24V 50/60Hz AC coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 182mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 24V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.2 million cycles at 80A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.
Additional Information
Product Name:
TeSys Deca
Safety Reliability Level:
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Warranty:
18 months
Country of Origin:
France
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP110205EN
Coil Technology:
without built-in suppressor module
Rated Breaking Capacity:
1100 A at 440 V for power circuit conforming to IEC 60947
Pole Contact Composition:
3 NO
Mounting Support:
plate || rail
[Ie] Rated Operational Current:
125 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 80 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 80 A (at <60°C) at <= 440 V AC AC-3e for power circuit || 55 A (at <60°C) at <= 400 V AC AC-4 for power circuit
Interlocking Type:
mechanical
Device Presentation:
preassembled with reversing power busbar
Height:
127 mm
Reach Free Of Svhc:
Yes
Eu Rohs Directive:
Compliant
Sustainable Offer Status:
Green Premium product
Auxiliary Contact Composition:
1 NO + 1 NC
Power Dissipation Per Pole:
12.5 W AC-1 || 5.1 W AC-3 || 5.1 W AC-3e
Average Impedance:
0.8 mOhm - Ith 125 A 50 Hz for power circuit
Inrush Power In Va:
245-245 VA 60 Hz cos phi 0.75 (at 20°C) || 245-245 VA 50 Hz cos phi 0.75 (at 20°C)
Product Certifications:
UL || CSA || RINA || GOST || CCC || DNV || LROS (Lloyds register of shipping) || GL || BV || UKCA
Signaling Circuit Frequency:
25...400 Hz
Pollution Degree:
3
Standards:
CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
Range:
TeSys
Electrical Durability:
0.8 Mcycles 125 A AC-1 <= 440 V || 1.5 Mcycles 80 A AC-3 <= 440 V || 1.5 Mcycles 80 A AC-3e <= 440 V
Protective Cover:
with
Motor Power Kw:
22 kW at 220...230 V AC 50 Hz || 37 kW at 380...400 V AC 50 Hz || 45 kW at 415...440 V AC 50 Hz || 55 kW at 500 V AC 50 Hz || 45 kW at 660...690 V AC 50 Hz
Mechanical Robustness:
vibrations contactor open2 Gn, 5...300 Hz || shocks contactor open8 Gn for 11 ms || vibrations contactor closed3 Gn, 5...300 Hz || shocks contactor closed10 Gn for 11 ms
Mechanical Durability:
4 Mcycles
Ip Degree Of Protection:
IP20 front face IEC 60529
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947
[Ue] Rated Operational Voltage:
power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
[Ui] Rated Insulation Voltage:
power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL || power circuit 1000 V IEC 60947-4-1
Depth:
158 mm
Overvoltage Category:
III
Net Weight:
3.2 kg
Operating Altitude:
0...9842.52 ft (0...3000 m)
Minimum Switching Voltage:
17 V for Signaling circuit
Mercury Free:
Yes
Flame Retardance:
V1 conforming to UL 94
Poles Description:
3P
Associated Fuse Rating:
10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 200 A gG at <= 690 V coordination type 1 for power circuit || 160 A gG at <= 690 V coordination type 2 for power circuit
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Protective Treatment:
TH IEC 60068-2-30
Heat Dissipation:
6-10 W 50/60 Hz
