Schneider Electric JGA36250U31XYP Molded Case Circuit Breaker 600V 250A
$4,303.00
Schneider Electric
Schneider Electric LDL36250CU31X Molded Case Circuit Breaker 600V 250A
Schneider Electric
$5,648.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

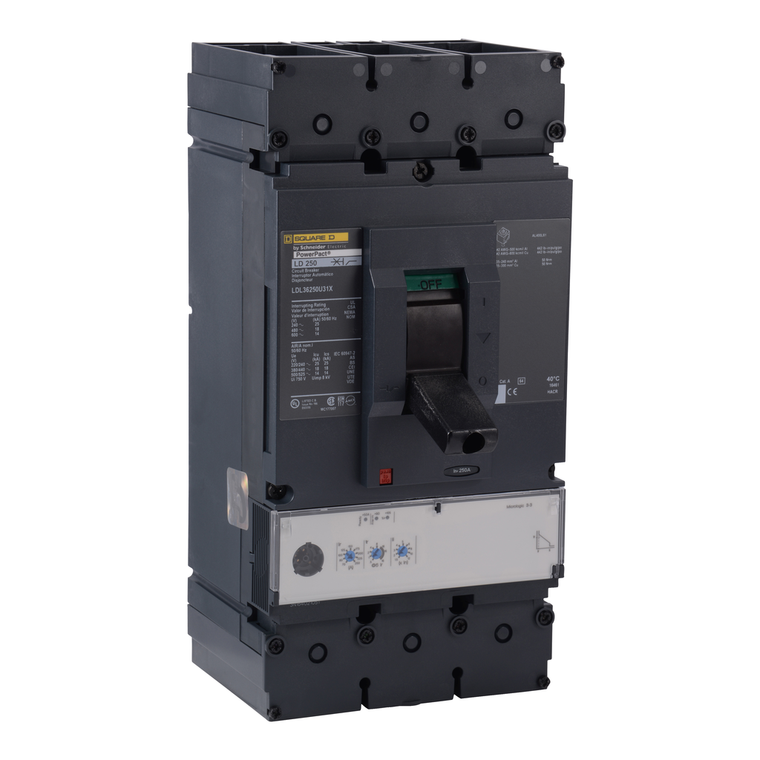

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 250A, 3 pole, circuit breaker has an interrupting rating of 14kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 100%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Electrical Connection:
- lugs, line || lugs, load
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Mounting Mode:
- unit mount lug)
- Depth:
- 110 mm
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Pollution Degree:
- 3 IEC 60947-1
- Poles Description:
- 3P
- Protection Technology:
- current limiter
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Circularity Profile:
- ENVEOLI2206029EN
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Product Or Component Type:
- circuit breaker
- Width:
- 140 mm
- Ambient Air Temperature For Operation:
- -2-70 °C
- Terminal Identifier:
- AL400L61K3
- Product Certifications:
- UL || CSA || NOM
- Circuit Breaker Application:
- HACR rated
- Range:
- PowerPact
- Mercury Free:
- Yes
- Net Weight:
- 6.2 kg
- Line Rated Current:
- 250-250 A
- Breaking Capacity Code:
- D
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Environmental Disclosure:
- ENVPEP2206029EN
- Mounting Support:
- lug
- Ip Degree Of Protection:
- front cover IP40
- Network Frequency:
- 50/60 Hz
- Product Name:
- PowerPact L
- Eu Rohs Directive:
- Compliant with Exemptions
- Awg Gauge:
- AWG 2...600 kcmil copper || AWG 2...500 kcmil aluminium
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Warranty:
- 18 months
- Tightening Torque:
- 50-50 N.m 35-300 mm² (AWG 2...600 kcmil) || 50-50 N.m 35-240 mm² (AWG 2...500 kcmil)
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Height:
- 340 mm
- Communication Interface:
- Modbus || Ethernet
- Continuous Current Rating:
- 1
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.3, LI
- Color:
- Black
- Utilisation Category:
- category A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Control Type:
- toggle
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Ambient Air Temperature For Storage:
- -50-85 °C
- Device Application:
- distribution
- Trip Unit Name:
- MicroLogic 3.3
- Suitability For Isolation:
- yes IEC 60947-2
- Device Short Name:
- L-Frame
- Pvc Free:
- Yes
- Wire Stripping Length:
- 31 mm
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
