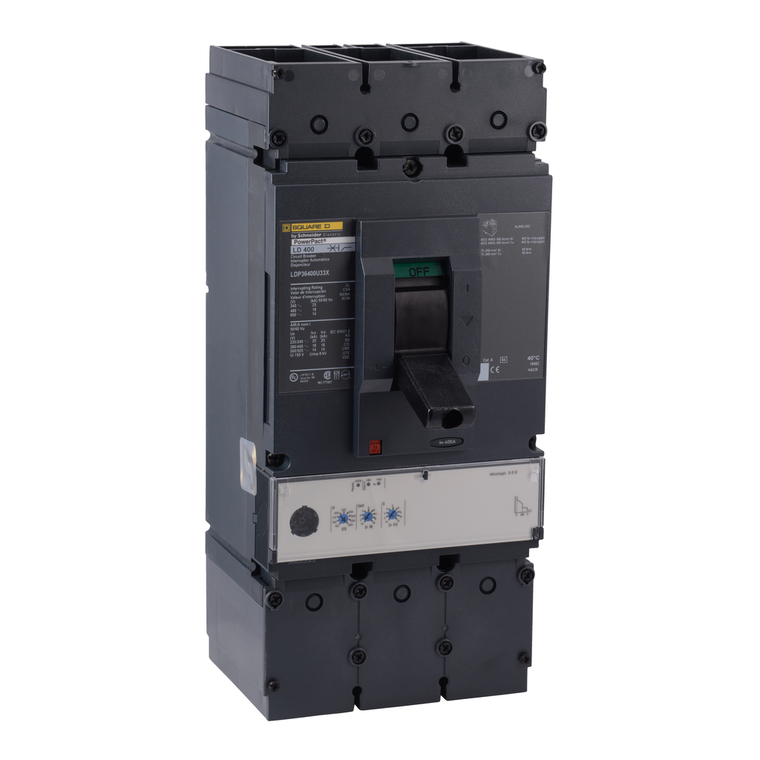

Schneider Electric LDP36400U33X Molded Case Circuit Breaker 600V 400A
Schneider Electric
$5,391.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LDP36400U33X Molded Case Circuit Breaker 600V 400A
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 14kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has terminal nuts on the line side and lugs on the load side. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Warranty:
- 18 months
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Tightening Torque:
- 50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Wire Stripping Length:
- 31 mm || 61 mm
- Line Rated Current:
- 400-400 A
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Ip Degree Of Protection:
- front cover IP40
- Terminal Identifier:
- AL600LS52K3
- Sustainable Offer Status:
- Green Premium product
- Mounting Mode:
- unit mount lug)
- Eu Rohs Directive:
- Compliant with Exemptions
- Depth:
- 110 mm
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Continuous Current Rating:
- 0.8
- Ambient Air Temperature For Operation:
- -2-70 °C
- Awg Gauge:
- 2 x AWG 2/0...500 kcmil aluminium/copper
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Environmental Disclosure:
- ENVPEP2206029EN
- Network Frequency:
- 50/60 Hz
- Device Application:
- distribution
- Net Weight:
- 6.2 kg
- Communication Interface:
- Modbus || Ethernet
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Product Name:
- PowerPact L
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.3 S, LSI
- Pvc Free:
- Yes
- Electrical Connection:
- terminal nut, line || lugs, load
- Utilisation Category:
- category A
- Breaking Capacity Code:
- D
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Circuit Breaker Application:
- HACR rated
- Product Or Component Type:
- circuit breaker
- Protection Technology:
- current limiter
- Mounting Support:
- lug
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Range:
- PowerPact
- Width:
- 140 mm
- Poles Description:
- 3P
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Ambient Air Temperature For Storage:
- -50-85 °C
- Trip Unit Name:
- MicroLogic 3.3 S
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Suitability For Isolation:
- yes IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- Control Type:
- toggle
- Color:
- Black
- Device Short Name:
- L-Frame
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Height:
- 340 mm
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Circularity Profile:
- ENVEOLI2206029EN
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
