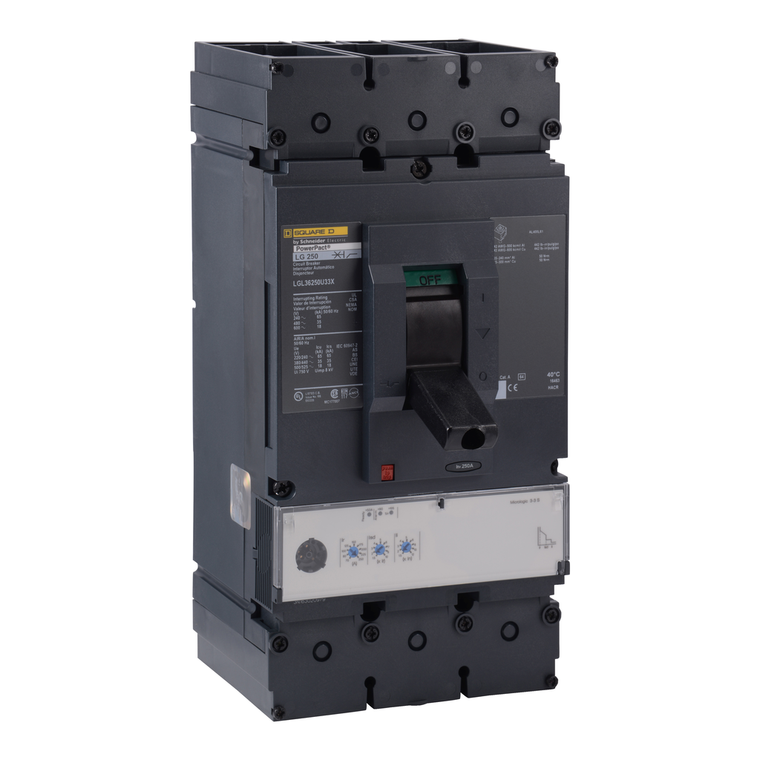

Schneider Electric LGL36250CU33X Molded Case Circuit Breaker 600V 250A
Schneider Electric
$6,538.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LGL36250CU33X Molded Case Circuit Breaker 600V 250A
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 250A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 100%. This circuit breaker has a continuous current rating of 100%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range:
- PowerPact
- Communication Interface:
- Modbus || Ethernet
- Width:
- 140 mm
- Net Weight:
- 6.2 kg
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Pvc Free:
- Yes
- Tightening Torque:
- 50-50 N.m 35-300 mm² (AWG 2...600 kcmil) || 50-50 N.m 35-240 mm² (AWG 2...500 kcmil)
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Control Type:
- toggle
- Ip Degree Of Protection:
- front cover IP40
- Product Certifications:
- UL || CSA || NOM
- Mercury Free:
- Yes
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Rohs Exemption Information:
- Yes
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.3 S, LSI
- Wire Stripping Length:
- 31 mm
- Circuit Breaker Application:
- HACR rated
- Warranty:
- 18 months
- Trip Unit Name:
- MicroLogic 3.3 S
- Mounting Mode:
- unit mount lug)
- Sustainable Offer Status:
- Green Premium product
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Breaking Capacity Code:
- G
- Device Short Name:
- L-Frame
- Color:
- Black
- Ambient Air Temperature For Storage:
- -50-85 °C
- Environmental Disclosure:
- ENVPEP2206029EN
- Depth:
- 110 mm
- Network Frequency:
- 50/60 Hz
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Electrical Connection:
- lugs, line || lugs, load
- Pollution Degree:
- 3 IEC 60947-1
- Line Rated Current:
- 250-250 A
- Device Application:
- distribution
- Eu Rohs Directive:
- Compliant with Exemptions
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Product Or Component Type:
- circuit breaker
- Mounting Support:
- lug
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Product Name:
- PowerPact L
- Ambient Air Temperature For Operation:
- -2-70 °C
- Awg Gauge:
- AWG 2...600 kcmil copper || AWG 2...500 kcmil aluminium
- Suitability For Isolation:
- yes IEC 60947-2
- Circularity Profile:
- ENVEOLI2206029EN
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Terminal Identifier:
- AL400L61K3
- Continuous Current Rating:
- 1
- Height:
- 340 mm
- Utilisation Category:
- category A
- Poles Description:
- 3P
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
