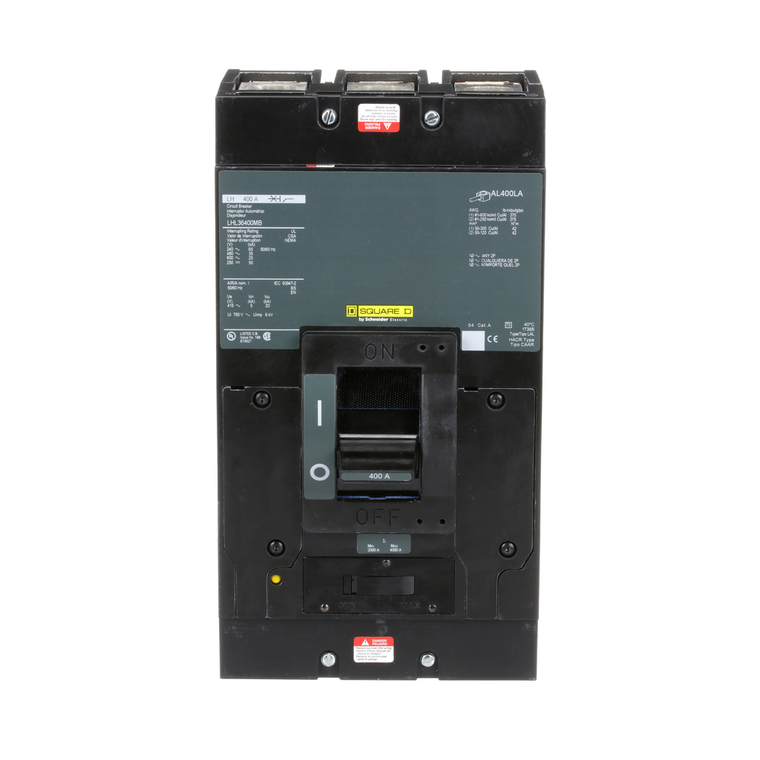

Schneider Electric LHL36400MB Molded Case Circuit Breaker 600V 400A

(No reviews yet) Write a Review

Write a Review

Schneider Electric LHL36400MB Molded Case Circuit Breaker 600V 400A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LHL36400MB

UPC:

785901005490

MPN:

Condition:

New

Eu Rohs Directive:

Compliant with Exemptions

Depth:

5.84 in

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

UL Listed || CSA || IEC

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Product Or Component Type:

circuit breaker

Width:

6 in

Warranty:

18 months

Tightening Torque:

13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)

Line Rated Current:

400 A

Magnetic Tripping Current:

4000-4000 A

Electrical Connection:

lugs, load || lugs, line

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP1410004EN

Operator Profile:

short lever

Height:

11 in

Halogen Content Performance:

Halogen free plastic parts product

Poles Description:

3P

Circuit Breaker Application:

HACR rated

Breaking Capacity Code:

H

Rohs Exemption Information:

Yes

Pvc Free:

Yes

Mounting Mode:

unit mount

Terminal Identifier:

AL400LA

Magnetic Hold Current:

2000 A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Sustainable Offer Status:

Green Premium product

Circularity Profile:

N/A

Trip Unit Technology:

thermal-magnetic

Datasheet:

View
