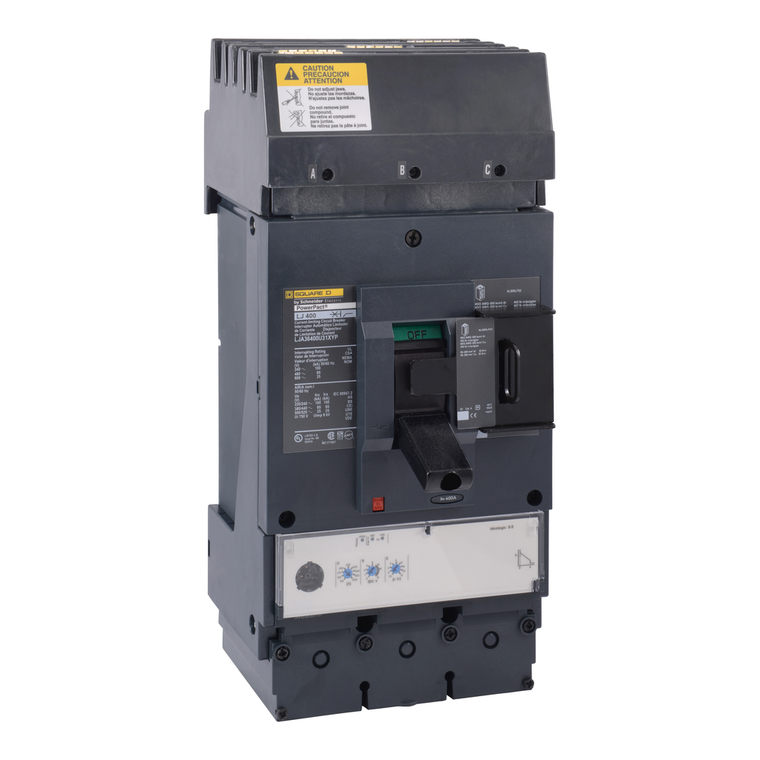

Schneider Electric LJA36400U31XYP Molded Case Circuit Breaker 600V 400A
Schneider Electric
$8,895.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LJA36400U31XYP Molded Case Circuit Breaker 600V 400A
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. This unit includes a factory installed padlock handle.
- Width:
- 140 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Product Or Component Type:
- circuit breaker
- Terminal Identifier:
- AL600LF52K3
- Tightening Torque:
- 50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
- Depth:
- 110 mm
- Circularity Profile:
- ENVEOLI2206029EN
- Color:
- Black
- Sustainable Offer Status:
- Green Premium product
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Height:
- 340 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Net Weight:
- 6.2 kg
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Product Certifications:
- UL || CSA || NOM
- Wire Stripping Length:
- 31 mm
- Product Name:
- PowerPact L
- Rohs Exemption Information:
- Yes
- Poles Description:
- 3P
- Communication Interface:
- Modbus || Ethernet
- Trip Unit Name:
- MicroLogic 3.3
- Device Short Name:
- L-Frame
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Network Frequency:
- 50/60 Hz
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP2206029EN
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Device Application:
- distribution
- Mounting Height:
- 6 in
- Control Type:
- toggle
- Utilisation Category:
- category A
- Pvc Free:
- Yes
- Ambient Air Temperature For Operation:
- -2-70 °C
- Breaking Capacity Code:
- J
- Line Rated Current:
- 400-400 A
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.3, LI
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Circuit Breaker Application:
- HACR rated
- Awg Gauge:
- AWG 3/0...500 kcmil aluminium/copper
- Mounting Mode:
- I-Line bracket)
- Mounting Support:
- bracket
- Pollution Degree:
- 3 IEC 60947-1
- Suitability For Isolation:
- yes IEC 60947-2
- Warranty:
- 18 months
- Eu Rohs Directive:
- Compliant with Exemptions
- Protection Technology:
- current limiter
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Electrical Connection:
- I-Line connection, line || lugs, load
- Continuous Current Rating:
- 0.8
- Accessory / Separate Part Type:
- padlocking handle ON and OFF end
- Mercury Free:
- Yes
- Ip Degree Of Protection:
- front cover IP40
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Phase Connection:
- ABC
- Range:
- PowerPact
