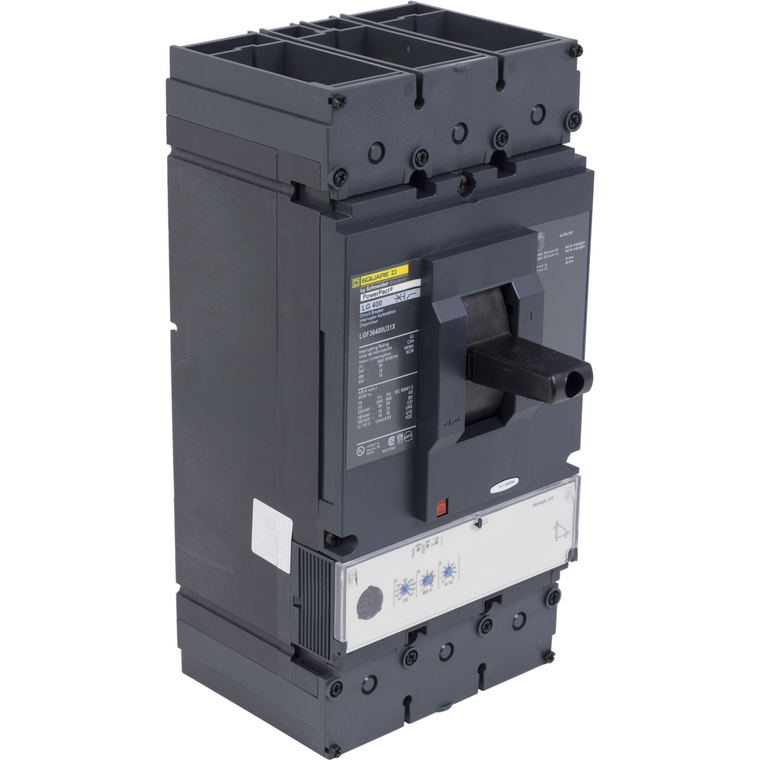

Schneider Electric LJF36400U31X Molded Case Circuit Breaker 600V 600A

Schneider Electric LJF36400U31X Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
LJF36400U31X
|
UPC:
7.85901E+11
Availability:
Contact us to confirm availability and lead times.
$8,478.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has a busbar connection. This circuit breaker has a continuous current rating of 80%. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Product Or Component Type:
circuit breaker
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Product Name:
PowerPact L
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Sustainable Offer Status:
Green Premium product
Trip Unit Name:
MicroLogic 3.3
Line Rated Current:
400-400 A
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Color:
Black
Mercury Free:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Net Weight:
6.2 kg
Height:
340 mm
Range:
PowerPact
Device Application:
distribution
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Device Short Name:
L-Frame
Environmental Disclosure:
ENVPEP2206029EN
Protection Technology:
current limiter
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes IEC 60947-2
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Wire Stripping Length:
31 mm || 61 mm
Continuous Current Rating:
0.8
Circuit Breaker Application:
HACR rated
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Ambient Air Temperature For Operation:
-2-70 °C
Ip Degree Of Protection:
front cover IP40
Pollution Degree:
3 IEC 60947-1
Pvc Free:
Yes
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Eu Rohs Directive:
Compliant with Exemptions
Utilisation Category:
category A
Breaking Capacity Code:
J
Poles Description:
3P
Control Type:
toggle
Mounting Mode:
unit mount busbar)
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Mounting Support:
busbar
Electrical Connection:
busbar connection, line || busbar connection, load
Network Frequency:
50/60 Hz
Warranty:
18 months
Product Certifications:
UL || CSA || NOM
Terminal Identifier:
AL600LS52K3
Ambient Air Temperature For Storage:
-50-85 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Communication Interface:
Modbus || Ethernet
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Circularity Profile:
ENVEOLI2206029EN
Depth:
110 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Width:
140 mm
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
