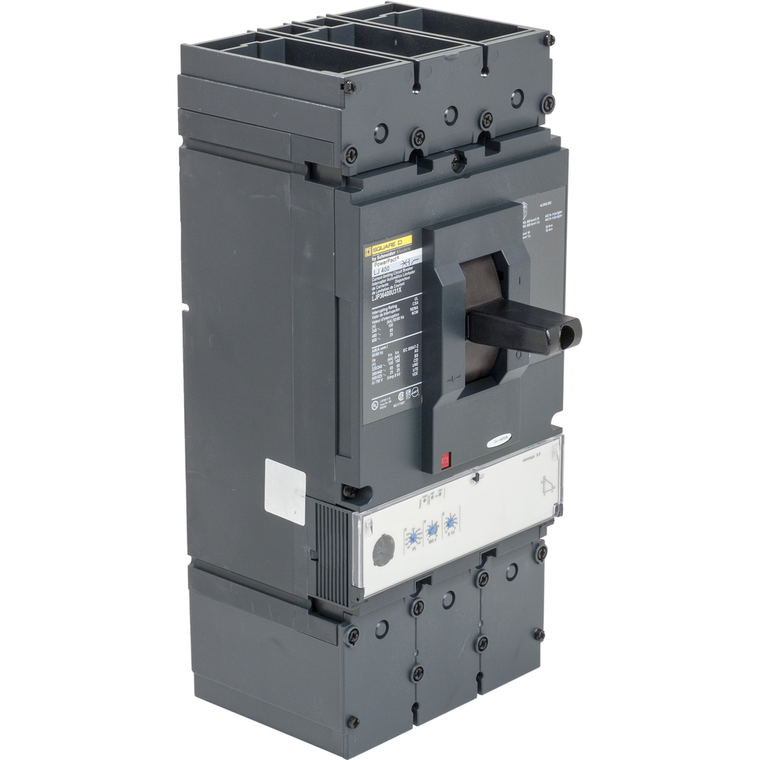

Schneider Electric LJP36400CU31X Molded Case Circuit Breaker 600V 600A

Schneider Electric LJP36400CU31X Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
LJP36400CU31X
|
UPC:
3.60649E+12
Availability:
Contact us to confirm availability and lead times.
$9,919.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has terminal nuts on the line side and lugs on the load side. This circuit breaker has a continuous current rating of 100%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Communication Interface:
Modbus || Ethernet
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Line Rated Current:
400-400 A
Mounting Support:
lug
Device Application:
distribution
Sustainable Offer Status:
Green Premium product
Protection Technology:
current limiter
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ambient Air Temperature For Storage:
-50-85 °C
Pollution Degree:
3 IEC 60947-1
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Warranty:
18 months
Height:
340 mm
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Product Name:
PowerPact L
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Circuit Breaker Application:
HACR rated
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Product Or Component Type:
circuit breaker
Range:
PowerPact
Wire Stripping Length:
31 mm || 61 mm
Ambient Air Temperature For Operation:
-2-70 °C
Circularity Profile:
ENVEOLI2206029EN
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Control Type:
toggle
Mounting Mode:
unit mount lug)
Device Short Name:
L-Frame
Poles Description:
3P
Product Certifications:
UL || CSA || NOM
Ip Degree Of Protection:
front cover IP40
Color:
Black
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Depth:
110 mm
Net Weight:
6.2 kg
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Continuous Current Rating:
1
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Breaking Capacity Code:
J
Eu Rohs Directive:
Compliant with Exemptions
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Network Frequency:
50/60 Hz
Suitability For Isolation:
yes IEC 60947-2
Width:
140 mm
Utilisation Category:
category A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure:
ENVPEP2206029EN
Terminal Identifier:
AL600LS52K3
Electrical Connection:
terminal nut, line || lugs, load
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Trip Unit Name:
MicroLogic 3.3
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Pvc Free:
Yes
