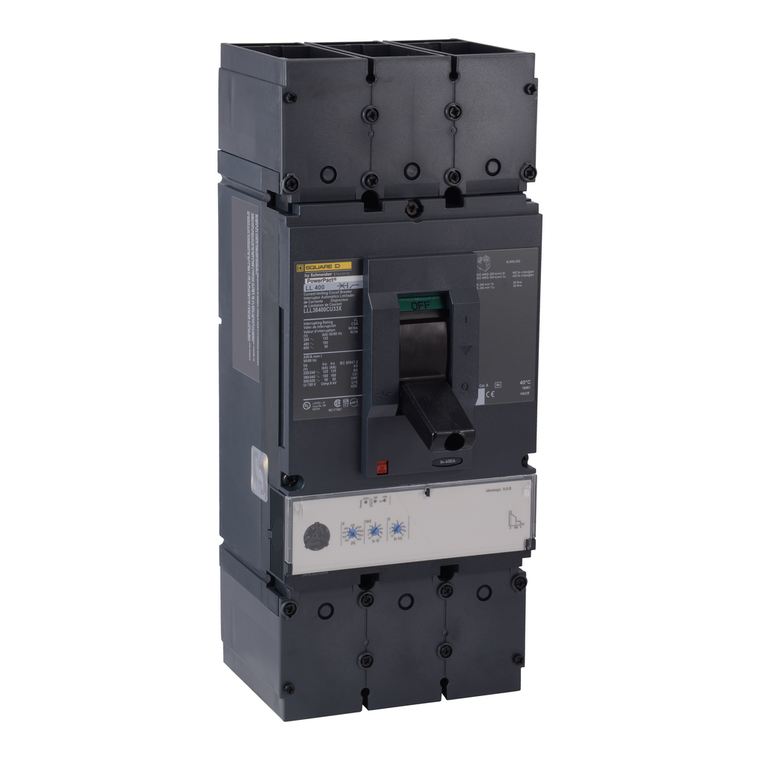

Schneider Electric LLL36400U33X Molded Case Circuit Breaker 600V 400A

Schneider Electric LLL36400U33X Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LLL36400U33X
|
UPC:
785901932826
Availability:
Contact us to confirm availability and lead times.
$10,511.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Mode:
unit mount lug)
Eu Rohs Directive:
Compliant with Exemptions
Product Or Component Type:
circuit breaker
Rohs Exemption Information:
Yes
Continuous Current Rating:
0.8
Network Frequency:
50/60 Hz
Net Weight:
6.2 kg
Control Type:
toggle
Pvc Free:
Yes
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Trip Unit Technology:
electronic, standard, MicroLogic 3.3 S, LSI
Circuit Breaker Application:
HACR rated
Breaking Capacity Code:
L
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Line Rated Current:
400-400 A
Product Name:
PowerPact L
Environmental Disclosure:
ENVPEP2206029EN
Warranty:
18 months
Ambient Air Temperature For Storage:
-50-85 °C
Color:
Black
Device Application:
distribution
Trip Unit Name:
MicroLogic 3.3 S
Communication Interface:
Modbus || Ethernet
Suitability For Isolation:
yes IEC 60947-2
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-2-70 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Ip Degree Of Protection:
front cover IP40
Poles Description:
3P
Wire Stripping Length:
31 mm || 61 mm
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Electrical Connection:
lugs, line || lugs, load
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Depth:
110 mm
Pollution Degree:
3 IEC 60947-1
Utilisation Category:
category A
Device Short Name:
L-Frame
Circularity Profile:
ENVEOLI2206029EN
Width:
140 mm
Breaking Capacity:
125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
Mounting Support:
lug
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Range:
PowerPact
Height:
340 mm
Mercury Free:
Yes
Terminal Identifier:
AL600LS52K3
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Product Certifications:
UL || CSA || NOM
Protection Technology:
current limiter
[Ics] Rated Service Breaking Capacity:
125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
