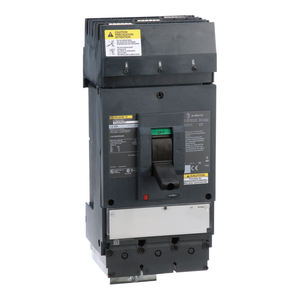

Schneider Electric LLN36000S60XABY023 Automatic Molded Case Switch 600V 600A

Schneider Electric LLN36000S60XABY023 Automatic Molded Case Switch 600V 600A

Schneider Electric
SKU:
LLN36000S60XABY023
|
UPC:
785901236764
Availability:
Contact us to confirm availability and lead times.
$9,121.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT L-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch is a plug in unit. This PowerPacT L, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT L automatic switches comply to UL and CSA standards. This unit includes a factory installed 2A/2B auxiliary switch and alarm switch.
Additional Information
Mounting Mode:
plug-in
Width:
5.51 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Circularity Profile:
ENVEOLI2206029EN
Environmental Disclosure:
ENVPEP2206029EN
Range Of Product:
PowerPact L
Height:
13.38 in
Depth:
6.61 in
Trip Unit Technology:
magnetic
[Ue] Rated Operational Voltage:
600 V AC
Short-Circuit Withstand:
125 kA 240 V UL 489 || 100 kA 480 V UL 489 || 50 kA 600 V UL 489
Product Certifications:
UL Listed || CSA || CCC || IEC || NMX || CE
Mercury Free:
Yes
Tightening Torque:
50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Pvc Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Terminal Identifier:
AL600LF52K3
Electrical Connection:
plug-in, line || plug-in, load
Eu Rohs Directive:
Compliant with Exemptions
Poles Description:
3P
Line Rated Current:
600 A
Breaking Capacity Code:
L
Magnetic Tripping Current:
6600-6600 A
Product Or Component Type:
automatic switch
Accessory / Separate Part Type:
auxiliary switch 2 NO + 2 NC
