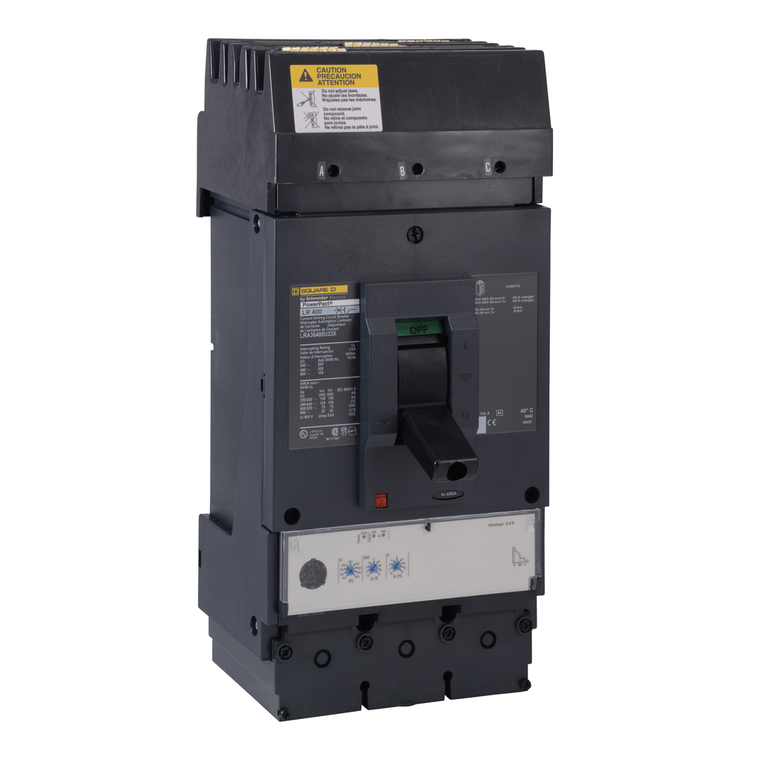

Schneider Electric LRA36600U33X Molded Case Circuit Breaker 600V 600A

Schneider Electric LRA36600U33X Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
LRA36600U33X
|
UPC:
3.60649E+12
Availability:
Contact us to confirm availability and lead times.
$14,634.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 100kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
[Ics] Rated Service Breaking Capacity:
150 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 125 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 75 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 690 V AC 50/60 Hz IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Operation:
-2-70 °C
Tightening Torque:
50-50 N.m 70-240 mm² (2 x AWG 2/0...500 kcmil)
Protection Technology:
current limiter
Color:
Black
Poles Description:
3P
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Control Type:
toggle
Trip Unit Technology:
electronic, standard, MicroLogic 3.3 S, LSI
Ambient Air Temperature For Storage:
-50-85 °C
Range:
PowerPact
Breaking Capacity:
200 kA 240 V AC 50/60 Hz UL 489 || 200 kA 480 V AC 50/60 Hz UL 489 || 100 kA 600 V AC 50/60 Hz UL 489
Eu Rohs Directive:
Compliant with Exemptions
Product Or Component Type:
circuit breaker
Mounting Height:
6 in
Mounting Support:
bracket
Terminal Identifier:
AL600LF52K3
Electrical Connection:
I-Line connection, line || lugs, load
Circuit Breaker Application:
HACR rated
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Suitability For Isolation:
yes IEC 60947-2
Pvc Free:
Yes
Utilisation Category:
category A
Network Frequency:
50/60 Hz
Breaking Capacity Code:
R
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Certifications:
UL || CSA || NOM
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Communication Interface:
Modbus || Ethernet
Depth:
110 mm
Device Short Name:
L-Frame
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Sustainable Offer Status:
Green Premium product
Device Application:
distribution
Ip Degree Of Protection:
front cover IP40
Circularity Profile:
ENVEOLI2206029EN
Product Name:
PowerPact L
Phase Connection:
ABC
Trip Unit Name:
MicroLogic 3.3 S
Continuous Current Rating:
0.8
Line Rated Current:
600-600 A
Environmental Disclosure:
ENVPEP2206029EN
Rohs Exemption Information:
Yes
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Wire Stripping Length:
31 mm
Height:
340 mm
Net Weight:
6.2 kg
Warranty:
18 months
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Mounting Mode:
I-Line bracket)
Width:
140 mm
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Pollution Degree:
3 IEC 60947-1
